1-1/2 921 600 CS THRD Y-STRAINER

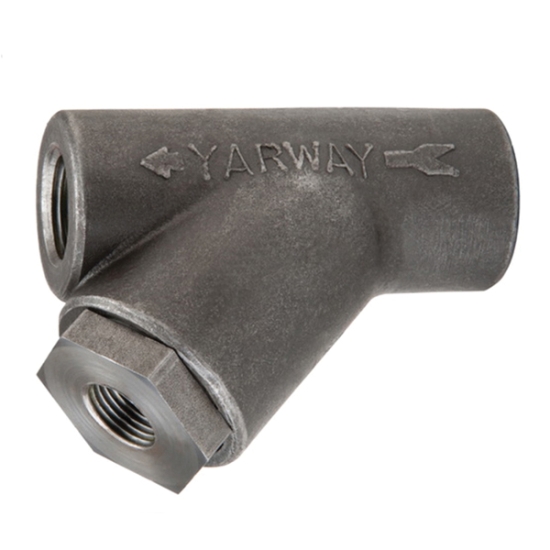

Yarway 921 Cast Steel Pipeline Y-Strainer, 1-1/2 IN, FNPT, 1/32 IN Perforated Screen
- Manufacturer: Pentair Valves and Control
- Brand: Yarway
- MGPN: 150921YS
- MPN: 150921YS
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Pipeline Y-Strainer, Series/Model: Model 921, Nominal Size: 1-1/2 IN, Connection Type: FNPT, Screen Size: 1/32 IN Perforated, Class 600 Pressure Class, Cast Steel Body Material, 18-8 Stainless Steel Screen, Material Standard: Body: ASTM A216 Grade WCB, Industry Standards: ANSI B1.20.1, B31.1, 6-1/8 IN Width, Other Physical Dimension: 4-9/32 IN Inlet Center To Bottom Of Strainer
| Item Name | : | Pipeline Y-Strainer |
| Series/Model | : | Model 921 |
| Nominal Size | : | 1-1/2 IN |
| Connection Type | : | FNPT |
| Screen Size | : | 1/32 IN Perforated |
| Pressure Class | : | Class 600 |
| Body Material | : | Cast Steel |
| Screen Material | : | 18-8 Stainless Steel |
| Material Standard | : | Body: ASTM A216 Grade WCB |
| Industry Standards | : | ANSI B1.20.1, B31.1 |
| Width | : | 6-1/8 IN |
| Other Physical Dimension | : | 4-9/32 IN Inlet Center To Bottom Of Strainer |
| Weight | : | 7.500 LB |
- Body material - ASTM and/or ASME as permitted under boiler code and power piping code. Provides assurance of quality and suitability for pressure/temperature adjustment in non-shock service
- Straight threads on cap - for easy removal when screen replacement is necessary
- Clad, non asbestos, spark-plug-type gasket provides reliable seal on machined body and cap
- Guided screen - screens fit into controlled machined bores in body and cap, and are not crushed, this fit provides good screen alignment and reliable capture of particles
- Installation - can be installed in vertical and horizontal piping with the blowdown connection oriented in any preferred direction
- Design - meets ASME B31.1. Conforms to recognized codes and standards for assurance of quality
Brochure/Catalog
