1-1/4 x 1 x 1-1/4 BMI ST TEE

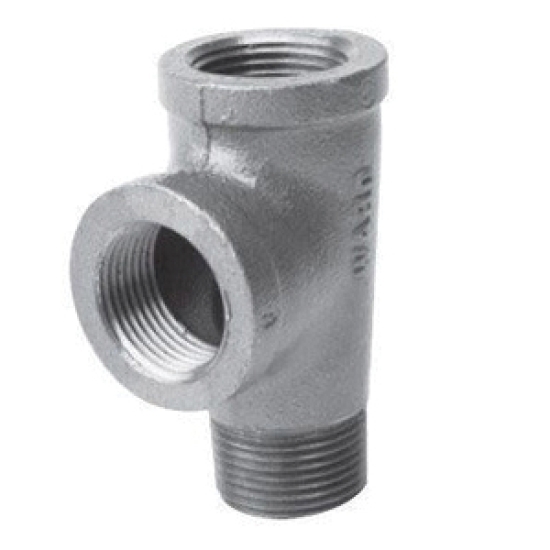

WARD MFG 1BX1X1B.BMST Street Tee, 1-1/4 X 1 X 1-1/4 IN, FNPT X MNPT X FNPT, Malleable Iron, Black, Class 150
- Manufacturer: Ward Manufacturing
- Brand: WARD MFG
- MGPN: TEE BM ST 1-1/4X1X1-1/4
- MPN: 1BX1X1B.BMST
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Ward Class 150 malleable iron pipe fittings are made in accordance with ASME B16.3 with threads that meet the requirements of ASME B1.20.1. In addition, Ward fittings have a chamfered opening to allow faster and easier pipe engagement. This feature also protects the threads from damage during handling. All Ward black and galvanized Class 150 malleable iron pipe fittings with outlets ranging from 1/2 IN through 4 IN are air tested.
WARD MFG Street Tee, Pressure Class: Class 150, 1-1/4 X 1 X 1-1/4 IN Nominal, FNPT X MNPT X FNPT Connection, Malleable Iron, Material Standard: ASME B16.3, Finish/Color: Black, 300 PSI Maximum Pressure, -20 - 150 DEG F, Other Physical Dimension: 1-3/4 IN Center To End, 2.45 IN Center To Male End, 0.91 IN MIP End Port Diameter, 0.67 IN Internal X 0.68 IN External Thread Length, 1.76 IN Takeout Male End, 1.04 IN Takeout Female End, Domestic/Import: Domestic
| Item Name | : | Street Tee |
| Pressure Class | : | Class 150 |
| Nominal Size | : | 1-1/4 X 1 X 1-1/4 IN |
| Connection Type | : | FNPT X MNPT X FNPT |
| Material | : | Malleable Iron |
| Material Standard | : | ASME B16.3 |
| Finish/Color | : | Black |
| Maximum Pressure | : | 300 PSI |
| Temperature Rating | : | -20 - 150 DEG F |
| Other Physical Dimension | : | 1-3/4 IN Center To End, 2.45 IN Center To Male End, 0.91 IN MIP End Port Diameter, 0.67 IN Internal X 0.68 IN External Thread Length, 1.76 IN Takeout Male End, 1.04 IN Takeout Female End |
| Domestic/Import | : | Domestic |
