3 CS FLG W/HNBR 28880

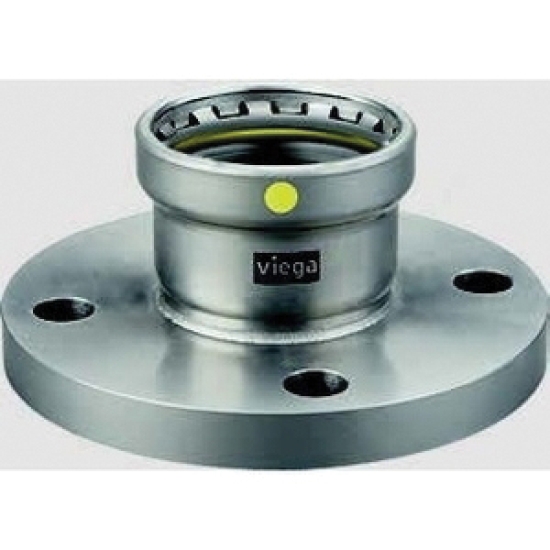

Viega MegaPressG™ 6659.5XL 28880 Adapter Flange, 3 IN, Press, Carbon Steel, Class 150
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: MEGAPRESS G CS FLG 3
- MPN: 28880
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Viega MegaPressG™ 6659.5XL Adapter Flange, Pressure Class: Class 150, 3 IN Nominal, Press Connection, Carbon Steel, 3.95 IN Length, 125 PSI Fuel Gas, 200 PSI Other Application Maximum Pressure, -40 - 180 DEG F, Industry Standards: ASME B31.1, B31.3, B31.9, CRN 0A14541.5 A/B/C, CSA: ANSI LC 4a/CSA 6.32a, DNV-GL, IAPMO: ANSI LC 4a/CSA 6.32a, ICC-ES: ANSI LC 4a/CSA 6.32a, Lloyd's Register, CAN/CSA-B149.1, Additional Specifications: Includes: HNBR Sealing Elements
| Additional Specifications | : | Includes: HNBR Sealing Elements |
| Connection Type | : | Press |
| Industry Standards | : | ASME B31.1, B31.3, B31.9, CRN 0A14541.5 A/B/C, CSA: ANSI LC 4a/CSA 6.32a, DNV-GL, IAPMO: ANSI LC 4a/CSA 6.32a, ICC-ES: ANSI LC 4a/CSA 6.32a, Lloyd's Register, CAN/CSA-B149.1 |
| Item Name | : | Adapter Flange |
| Length | : | 3.95 IN |
| Material | : | Carbon Steel |
| Maximum Pressure | : | 125 PSI Fuel Gas, 200 PSI Other Application |
| Nominal Size | : | 3 IN |
| Pressure Class | : | Class 150 |
| Series/Model | : | 6659.5XL |
| Sub Brand | : | MegaPress®G™ |
| Temperature Rating | : | -40 - 180 DEG F |
