2-1/2 CS CAP W/HNBR 28860

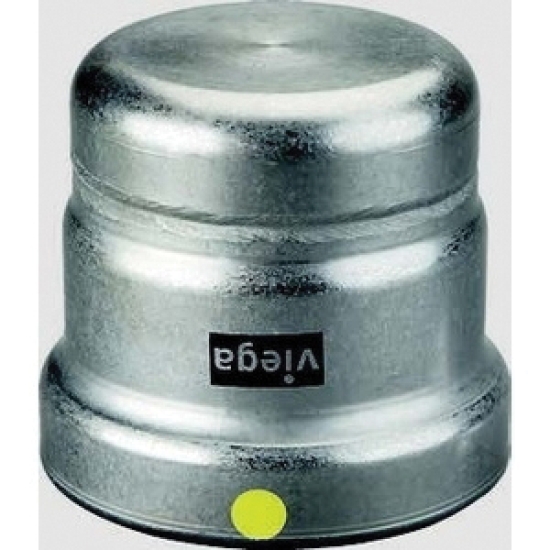

Viega MegaPressG™ 6656.1XL 28860 Cap, 2-1/2 IN, Press, 3-1/4 IN L, Carbon Steel
- Manufacturer: Viega LLC
- Brand: Viega
- MGPN: MEGAPRESS G CS CAP 2-1/2
- MPN: 28860
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Viega MegaPressG™ 6656.1XL Cap, 2-1/2 IN Nominal, Press Connection, Carbon Steel, 3-1/4 IN Length, 125 PSI Fuel Gas, 200 PSI Other Application Maximum Pressure, -40 - 180 DEG F, Industry Standards: ASME B31.1, B31.3, B31.9, CRN 0A14541.5 A/B/C, CSA: ANSI LC 4a/CSA 6.32a, DNV-GL, IAPMO: ANSI LC 4a/CSA 6.32a, ICC-ES: ANSI LC 4a/CSA 6.32a, Lloyd's Register, CAN/CSA-B149.1, Additional Specifications: Includes: HNBR Sealing Elements
| Additional Specifications | : | Includes: HNBR Sealing Elements |
| Connection Type | : | Press |
| Industry Standards | : | ASME B31.1, B31.3, B31.9, CRN 0A14541.5 A/B/C, CSA: ANSI LC 4a/CSA 6.32a, DNV-GL, IAPMO: ANSI LC 4a/CSA 6.32a, ICC-ES: ANSI LC 4a/CSA 6.32a, Lloyd's Register, CAN/CSA-B149.1 |
| Item Name | : | Cap |
| Material | : | Carbon Steel |
| Maximum Pressure | : | 125 PSI Fuel Gas, 200 PSI Other Application |
| Nominal Size | : | 2-1/2 IN |
| Series/Model | : | 6656.1XL |
| Sub Brand | : | MegaPress®G™ |
| Temperature Rating | : | -40 - 180 DEG F |
