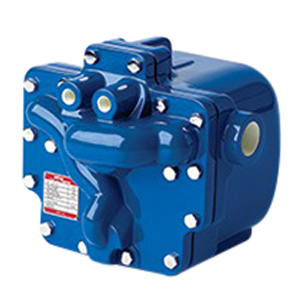

The Spirax Sarco APT14, APT14HC and APT14SHC automatic pump traps are flanged or screwed displacement receivers pressure rated to PN16 the units are capable of automatically trapping or pumping, depending on pipeline conditions the unit is operated by steam and is used to remove condensate from process plant under all operating conditions including vacuum.

Automatic Pump Trap, Series/Model: Model APT14, Nominal Size: 1-1/2 X 1 IN, Connection Type: NPT, Pressure Rating: 200 PSIG, Ductile Iron Body Material, Material Standard: EN JS 1025/ASTM A395, Industry Standards: CE Marked, Temperature Rating: 198 DEG C, Other Physical Dimension: 12 IN Height, Additional Specifications: Pump Discharge/Cycle: 1.3 GAL, Maximum Trapping Capacity: 8818 LB/HR, Maximum Pumping Capacity: 2425 LB/HR

For over 50 years, This has been involved with the design and manufacture of products for efficient condensate management. We have now developed a range of compact, condensate drainage systems in simple-to-install products. The APT has been designed to remove condensate from steam heat exchangers and process plant under all operating conditions and forms an integral part of the condensate removal process.

• Pump trap is a flanged or screwed displacement receiver pressure rated to PN16
• The unit is capable of automatically trapping or pumping, depending on pipeline conditions
• The unit is operated by steam and is used to remove condensate from process plant under all operating conditions including vacuum

• Instruction/Installation Manual https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/SpiraxSarco_6120390_Instruction_Installation_Manual.pdf
