The Thermodynamic steam trap cycles periodically to discharge condensate very near to steam temperature. It is unaffected by waterhammer or superheat. The UTD is a unique solution to maintain the disc in the horizontal plane by means of a universal connector. The trap is easily replaced or removed for servicing without disturbing the pipe connections.

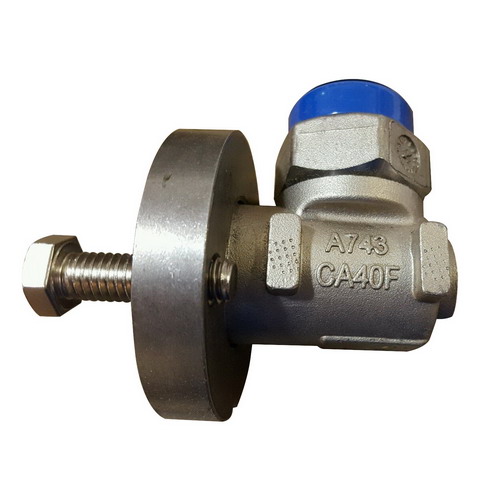

Low Capacity Universal Thermo-Dynamic Steam Trap, Series/Model: Model UTD52L, Pressure Rating: 450 PSIG, Stainless Steel Body Material, Material Standard: ASTM A743 Grade CA40F, Finish/Color: Cool Blue Cap, Temperature Rating: 400 DEG C

• The Thermo-dynamic steam trap cycles periodically to discharge condensate very near to steam temperature
• It is unaffected by water hammer or superheat
• The UTD is a unique solution to maintain the disc in the horizontal plane by means of a universal connector
• The trap is easily replaced or removed for servicing without disturbing the pipe connections

Application: Used in steam main drainage and steam tracing and constant pressure/constant load applications

• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/SpiraxSarco_66173C_Specification_Sheet.pdf
