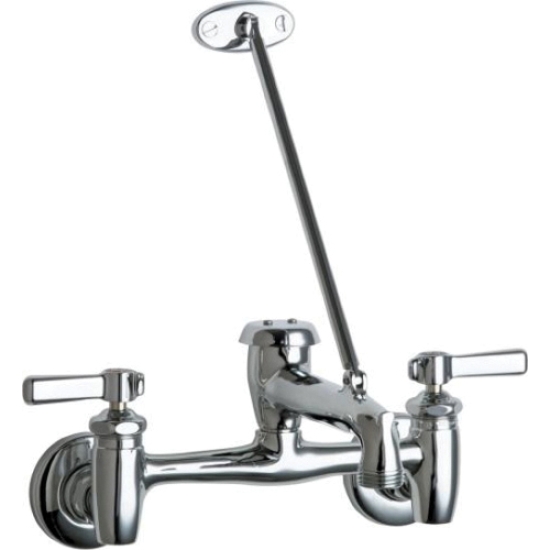

Service Sink Faucet, Manual Operation, 2 Handles, Handle Type: Lever, 1/2 IN Inlet Size, Connection Type: FNPT, Flow Rate: 12 GPM, 2 Holes, 8 IN Faucet Centers, Material: Cast Brass, Finish/Color: Chrome Plated, Mounting: Wall, 7-7/8 IN Spout Reach, 4 IN Spout Total Height, 1-1/8 IN Spout Height Deck To Aerator, ADA Compliant: Yes, Industry Standards: ASME A112.18.1/CSA B125.1, ADA Compliant ANSI/ICC A117.1, Temperature Rating: 40 - 140 DEG F, Additional Specifications: Pressure Rating: 20 - 125 PSI

• Handles include color-coded index
• Integral supply stops
• 8 IN body, adjustable arms 7-5/8 - 8-3/8 IN centers
• Vandal-proof 2-3/8 IN lever handle
• Ceramic 1/4-turn operating cartridge, right-hand
• Ceramic 1/4-turn operating cartridge, left-hand
• Arm, 3/16 Offset
• Vacuum breaker assembly

• Brochure https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ChicagoFaucet_305-VBRCF_Brochure.pdf
• Instruction/Installation Manual https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ChicagoFaucet_897-CP_Instruction_Installation_Manual.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ChicagoFaucet_897-CP_Specification_Sheet.pdf
