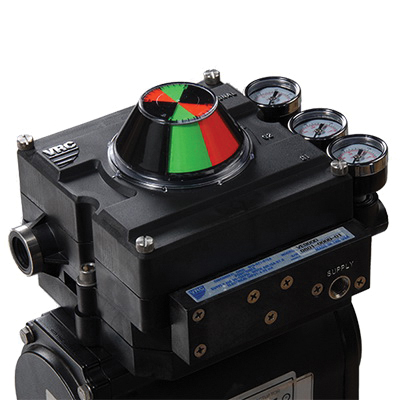

The VE model pneumatic valve positioner uses a 4 - 20 MA input control signal to control valve or damper position. Many options are available to the basic unit to provide flexibility for your application. Positioner and options are designed for easy field installation. The base unit can be reconfigured to accommodate changes in your ongoing control needs, protecting your initial investment.

• Modular: Modularity is the cornerstone of the entire VRC line, upgrading or modifying any unit is simple, quick and hassel-free, switch from pneumatic to electro-pneumatic with ease, upgrade a positioner in the field with limit switches and position transmitters easily, VRC simplifies upgrades, minimizes inventory and eases servicing like no other line on the market
• Easy to mount: Adaptability is a key feature of the V series, regardless of actuator model or design, the option V series universal Mounting Kit allows for customized adaptation to most current industry models, sizes and styles of quarter turn actuators, the low profile design of the V Series Universal Mounting Kit insures high performance adaption to the accessory side of the actuator
• Corrosion resistant: VRC corrosion resistance is unequaled, the I/P converter and position feedback transmitter are epoxy sealed and the proximity switches are hermetically sealed for the ultimate environmental protection, the PPA enclosure and internals exceed NEMA standards and are specifically designed for all routine and most highly corrosive applications, the PPA enclosure is inherently waterproof and carbon graphite filled to satisfy the toughest demands in both indoor and outdoor applications
• Resolution: 0.25% maximum, 0.1% typical
• Repeatability: 99.75% minimum, 99.9% typical
• Hysteresis: 0.5% maximum, 0.25% typical
• Linearity: plus or minus 1% maximum
• 250 gain (single-acting) and 500 (double-acting) gain at 80 PSIG
• Flat 90 DEG position indicator
• Linear characterizing cam
• Carpenter 70 grade stainless steel standard spool valve
• 300 stainless steel rings, cover and bolt, GE lexan indicator lens, 300 stainless steel spool valve, buna-N signal diaphragm and o-rings
