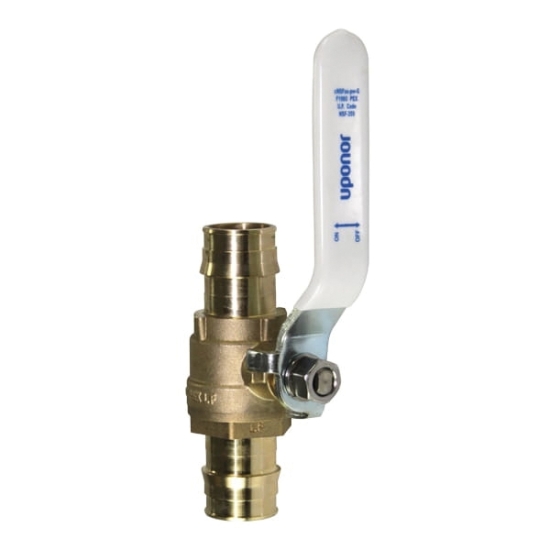

ProPEX Full-Port Ball Valve, 1 IN, PEX, 6.504 IN Width, 2.181 IN Height, Brass Body, Stainless Steel Stem, Material Standard: ASTM F877, ASTM F1960, Lead Free: Yes, Industry Standards: UPC, IBC, IRC, IPC, NPC of Canada, UMC, IMC, NSF/ANSI/CAN 372, NSF/ANSI 359, CSA B137.5, NSF/ANSI/CAN 61, NSF/ANSI 14, cNSFus-pw-G, U.P.Code, 2.181 IN Inlet Center To Top Of Handle

ProPEX® lead-free brass commercial ball valves (full-port) are designed and dimensioned to deliver all the benefits of the ProPEX® connection that you have grown to expect from an Uponor system. These valves are acceptable for use in a system containing no more than 50% propylene glycol. The valves feature a stainless steel ball and stem for greater durability, longevity, and system performance. Stem extension kits are available for insulated piping applications (accommodates up to 2 IN of insulation).

• Brochure/Catalog https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/1018245_Catalog.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/LFC4821010SS_Spec.pdf
