8 CTRLINE LUG BFV BRZ DISC

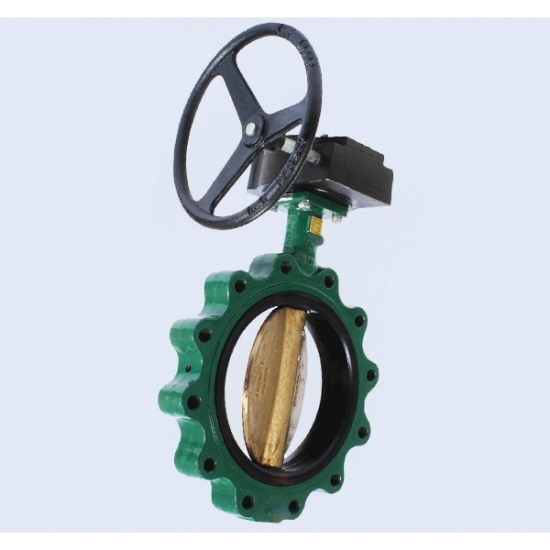

Center Line® 200 08CV061355-N Butterfly Valve, 8 IN, Lug, Ductile Iron, 200 PSI
- Manufacturer: Crane Energy Flow Solutions
- Brand: Center Line®
- MGPN: VLV BF L DI/BR 200G 8
- MPN: 08CV061355-N
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Center Line® 200 Resilient Seated Butterfly Valve, 8 IN Nominal, Lug Connection, 200 PSI, -30 - 275 DEG F, Ductile Iron Body, Gear Operator, 416 Stainless Steel Stem, EPDM Seat, Material Standard: ASTM A536 Grade 65-45-12, ASTM A582, Industry Standards: ASME B16.1, ASME B16.5, AWWA C504-8, MSS-SP25, MSS-SP67, NSF 61 Certified, CE/PED, Other Physical Dimension: 2-1/2 IN Inlet To Outlet Length, 10-1/4 IN Top To Inlet Center, Additional Specifications: Disc Material: Aluminum Bronze, Shaft Material: 416 Stainless Steel, Bushing Material: PTFE
| Item Name | : | Butterfly Valve |
| Type | : | Resilient Seated |
| Series/Model | : | 200 |
| Nominal Size | : | 8 IN |
| Connection Type | : | Lug |
| Pressure Rating | : | 200 PSI |
| Temperature Rating | : | -30 - 275 DEG F |
| Body Material | : | Ductile Iron |
| Operator Type | : | Gear |
| Stem Material | : | 416 Stainless Steel |
| Seat Material | : | EPDM |
| Material Standard | : | ASTM A536 Grade 65-45-12, ASTM A582 |
| Industry Standards | : | ASME B16.1, ASME B16.5, AWWA C504-8, MSS-SP25, MSS-SP67, NSF 61 Certified, CE/PED |
| Other Physical Dimension | : | 2-1/2 IN Inlet To Outlet Length, 10-1/4 IN Top To Inlet Center |
| Additional Specifications | : | Disc Material: Aluminum Bronze, Shaft Material: 416 Stainless Steel, Bushing Material: PTFE |
- Suitable for both gaseous and liquid service
- Phenolic backed seat for superior sealing and long term use
- Single-piece stem design assures even torque distribution
- Positive shut-off bi-directionally
- Direct mount automation
