The Model VSR-SF is a vane type water flow switch for use on wet sprinkler systems that use 1 IN, 1-1/4 IN, 1-1/2 IN or 2 IN pipe size. The unit may also be used as a sectional water flow detector on large systems. The unit contains two single pole double throw snap action switches and an adjustable, instantly recycling pneumatic retard. The switches are actuated when a flow of 8 - 10 GPM or more occurs downstream of the device. The flow condition must exist for a period of time necessary to overcome the selected retard period.

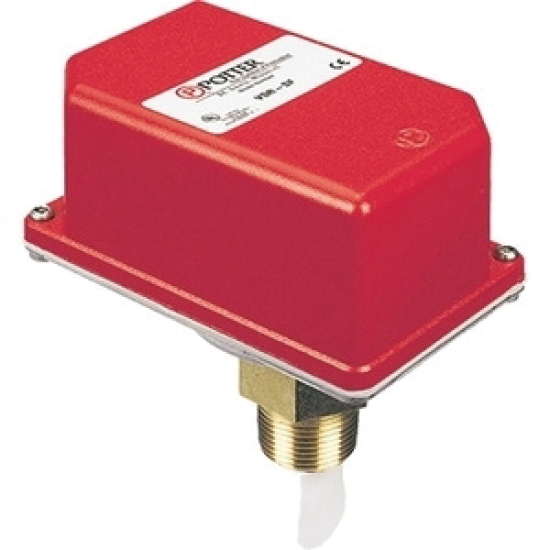

POTTER® VSR-SF Vane Type Waterflow Alarm Switch, 1 IN, 125/250 VAC, 30 VDC, 15 A at 125/250 VAC, 2 A at 30 VDC, Industry Standards: UL, cUL, CSFM Listed, NYMEA Accepted, CE Marked, Additional Specifications: Service Pressure: Up To 250 PSI, Minimum Flow Rate for Alarm: 8 - 10 GPM, Maximum Surge: 18 FPS, Temperature Range: 40 - 120 DEG F, Includes: Retard

• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/POTSWITCHVSRSF1112_Spec.pdf
