1 VIC P508 H PFSS 316 SLIP CPG

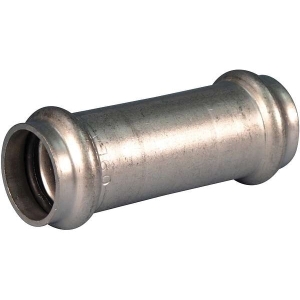

Victaulic Vic-Press™ Style P508 F010508XH5 Slip Coupling With Grade H Seal, 1 IN, Press, 316 Stainless Steel, SCH 10S
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: VIC PFSS CPG P508 H 1
- MPN: F010508XH5
- UPC: 883481065382
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Vic-Press™ Style P508 Slip Coupling With Grade H Seal, 1 IN Nominal, Press Connection, Schedule: SCH 10S, 316 Stainless Steel, Material Standard: ASTM A312, 1.31 IN Outside Diameter, 4.55 IN Length, 500 PSI Maximum Pressure, Industry Standards: ASME B31.1, ASME B31.9, ANSI 372, ANSI 61, NSF 372, NSF 61 Certified, Other Physical Dimension: 1.19 IN Insertion Length, 0.7 LB Weight
| Sub Brand | : | Vic-Press™ |
| Item Name | : | Slip Coupling With Grade H Seal |
| Series/Model | : | Style P508 |
| Nominal Size | : | 1 IN |
| Connection Type | : | Press |
| Schedule | : | SCH 10S |
| Material | : | 316 Stainless Steel |
| Material Standard | : | ASTM A312 |
| Outside Diameter | : | 1.31 IN |
| Length | : | 4.55 IN |
| Maximum Pressure | : | 500 PSI |
| Industry Standards | : | ASME B31.1, ASME B31.9, ANSI 372, ANSI 61, NSF 372, NSF 61 Certified |
| Other Physical Dimension | : | 1.19 IN Insertion Length |
| Weight | : | 0.7 LB |
- Fast, easy reliable way to join small diameter SCH 5S or 10S Type 316/316L stainless steel
- Meet ASME requirements for ANSI Class 150 systems
