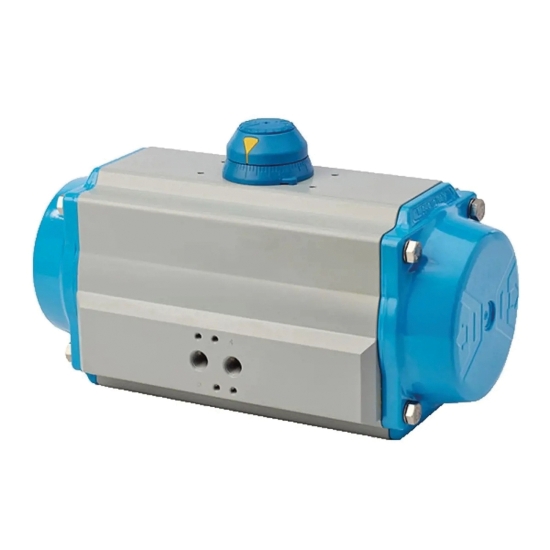

Jamesbury™ Valv-Powr™ VPVL Pneumatic Actuator, 1.97 IN Bore Diameter, 30 - 116 PSI, Actuation Time: 0.2 SEC Opening, 0.3 SEC Closing, 5.5 CU-IN Opening, 9.2 CU-IN Closing, 3.4 CU-IN Swept Air Volume, 6.8 - 16.9 FT-LB Output Torque, Finish/Color: PTFE-Coated, Industry Standards: ATEX Certified, IP67, IP68M, ISO 5211 Certified, -40 - 176 DEG F, 5.33 IN Length, 2.8 IN Width, 2.72 IN Height, Additional Specifications: Supply Media: Air/Nitrogen, Weight: 2.2 LB, Action: Double Acting

• Jamesbury™ Valv-Powr VPVL Series pneumatic actuator for fast, efficient and economical operation of rotary valves
• Modular design utilizing same body and end caps for both double acting and spring return versions
• Compact and lightweight
• High cycle life with low friction bearings on all rotating and sliding surfaces
• ISO 5211 mounting pattern
• Machined gear teeth provide longest life and smoother operation
• Safety contained springs prevent hazards of inadvertent ejection during maintenance
• Corrosion-resistant with PTFE-coated body, polyester-coated end caps and stainless steel fasteners
• Adjustable stops for both open and closed positions

• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/JACTVPVL051DABD_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/JACTVPVL051DABD_Spec.pdf
