1-1/2 SARCO FIG 34 STR

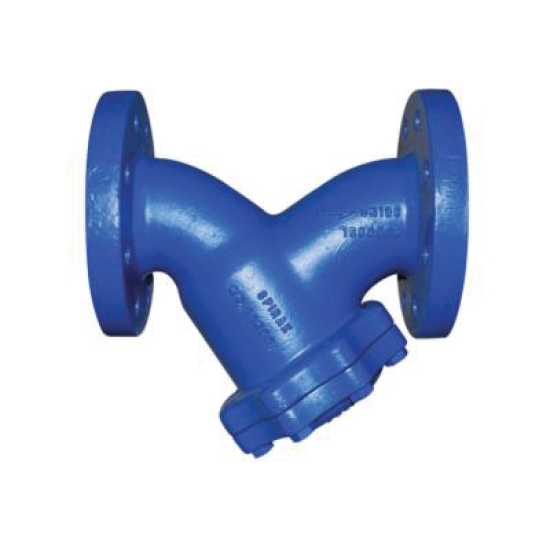

Spirax Sarco FIG 34 1675497 Y-Strainer, 1-1/2 IN Nominal, Flanged, 1/32 IN Screen, Class 150, Carbon Steel
- Manufacturer: Spirax Sarco Inc
- Brand: Spirax Sarco
- MGPN: SAR STR 34 1-1/2
- MPN: 1675497
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Fig 34 is an integrally flanged Y-type strainer designed to remove rust, scale and other debris from the pipeline. It is produced from carbon steel, ASTM material. The standard stainless steel screen in the DN15 to DN80 is 0.8 MM perforations and in the DN100 to DN200 it is 1.6 MM perforations.
Spirax Sarco FIG 34 Y-Strainer, 1-1/2 IN Nominal, Flanged Connection, 1/32 IN Screen, Blow-Off Port Size: 3/4 IN, Pressure Class: Class 150, 190 PSIG, Carbon Steel Body, Stainless Steel Screen, Material Standard: ASTM A216 Grade WCB, Industry Standards: European Pressure Equipment Directive 2014/68/EU, EN10204 3.1, 398.8 DEG C, 8 IN Length, Other Physical Dimension: 6 IN Center To End, Additional Specifications: Softgoods Material: Graphite, 18.8 LB Weight
| Item Name | : | Y-Strainer |
| Series/Model | : | FIG 34 |
| Nominal Size | : | 1-1/2 IN |
| Connection Type | : | Flanged |
| Screen Size | : | 1/32 IN |
| Blow-Off Port Size | : | 3/4 IN |
| Pressure Class | : | Class 150 |
| Pressure Rating | : | 190 PSIG |
| Body Material | : | Carbon Steel |
| Screen Material | : | Stainless Steel |
| Material Standard | : | ASTM A216 Grade WCB |
| Industry Standards | : | European Pressure Equipment Directive 2014/68/EU, EN10204 3.1 |
| Temperature Rating | : | 398.8 DEG C |
| Length | : | 8 IN |
| Other Physical Dimension | : | 6 IN Center To End |
| Additional Specifications | : | Softgoods Material: Graphite |
| Weight | : | 18.8 LB |
