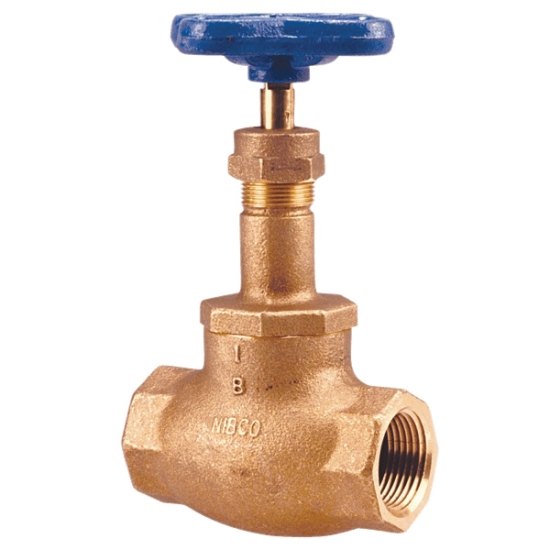

1/8 T211-B 125 THRD GLOBE VALVE
NIBCO T-211-B NL2J002 Globe Valve, 1/8 IN, FIPT, Class 125, Bronze Body
- Manufacturer: NIBCO
- Brand: NIBCO
- MGPN: 012T211BGLV
- MPN: NL2J002
- UPC: 039923622860
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The NIBCO® bronze globe valve features a screw-in bonnet with integral seat. The valve has a renewable bronze seat disc. It is equipped with class 125 female threaded ends for ease of installation. The globe valve is used for throttling or regulating flow.
NIBCO Globe Valve, Type: Multi-Turn, Screw-In Bonnet, Globe Valve, Series/Model: T-211-B, 1/8 IN Nominal, Connection Type: FIPT, 200 PSI (CWP) Non-Shock, 125 PSI (SWP) At 353 DEG F, Pressure Class: Class 125, Bronze Body, Standard Handwheel Operator, Malleable Iron Handle, Silicon Bronze Stem, Aramid Fibers With Graphite Packing, Bronze Gland, Bronze Seat, Material Standard: Body: ASTM B62, Bonnet: ASTM B62, Disc Holder: ASTM B62, Disc Holder Nut: ASTM B140/B62, Disc Nut: ASTM B62/ASTM B98, Handwheel: ASTM A47, Packing Gland: ASTM B16/ASTM B124/ASTM B62, Packing Nut: ASTM B62/ASTM B584, Seat Disc: ASTM B62, Stem: ASTM B371, Material Specification: Disc Holder Nut: UNS C31400, Disc Nut: UNS C65100, Packing Gland: UNS C36000, Packing Nut: UNS C37700/UNS C36000, Stem: UNS C69430/C69400, Industry Standards: ASME B1.20.1, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, 2.38 IN Width, Lead Free: No, Other Physical Dimension: 3.38 IN Center To Top Of Handle, 1.012 LB Weight
| Item Name | : | Globe Valve |
| Type | : | Multi-Turn, Screw-In Bonnet |
| Series/Model | : | T-211-B |
| Nominal Size | : | 1/8 IN |
| Connection Type | : | FIPT |
| Pressure Rating | : | 200 PSI (CWP) Non-Shock, 125 PSI (SWP) At 353 DEG F |
| Pressure Class | : | Class 125 |
| Body Material | : | Bronze |
| Operator Type | : | Standard Handwheel |
| Handle Material | : | Malleable Iron |
| Stem Material | : | Silicon Bronze |
| Packing Material | : | Aramid Fibers With Graphite |
| Gland Material | : | Bronze |
| Seat Material | : | Bronze |
| Material Standard | : | Body: ASTM B62, Bonnet: ASTM B62, Disc Holder: ASTM B62, Disc Holder Nut: ASTM B140/B62, Disc Nut: ASTM B62/ASTM B98, Handwheel: ASTM A47, Packing Gland: ASTM B16/ASTM B124/ASTM B62, Packing Nut: ASTM B62/ASTM B584, Seat Disc: ASTM B62, Stem: ASTM B371 |
| Material Specification | : | Disc Holder Nut: UNS C31400, Disc Nut: UNS C65100, Packing Gland: UNS C36000, Packing Nut: UNS C37700/UNS C36000, Stem: UNS C69430/C69400 |
| Industry Standards | : | ASME B1.20.1, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Width | : | 2.38 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 3.38 IN Center To Top Of Handle |
| Weight | : | 1.012 LB |
- 125 PSI/8.6 BAR saturated steam to 366 DEG F/178 DEG C
- 200 PSI/13.8 BAR non-shock cold working pressure
- Integral seat
- Screw-in bonnet
- Renewable bronze seat disc
- Class 125 threaded end connections
- Use in US drinking water applications is prohibited after January 3, 2014
- Dezincification-resistant
- Conforms to MSS SP-80
