3/8 ST70-38 MIXING VALVE LEAD FREE

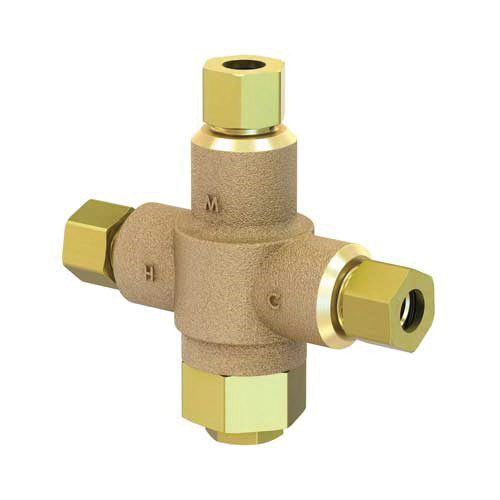

Acorn ST70-38 Lead Free DZR Brass Thermostatic Lavatory Tempering Mixing Valve, 3/8 IN, Compression

Item Name	:	Thermostatic Lavatory Tempering Mixing Valve
Series/Model	:	Model ST70-38
Nominal Size	:	3/8 IN
Connection Type	:	Compression
Pressure Rating	:	125 PSI
Flow Rate	:	0.25 - 4 GPM
Temperature Rating	:	85 - 115 DEG F
Body Material	:	DZR Brass
Industry Standards	:	IAPMO Certified Per ASSE 1070, CSA B125.3 Certified, CUPC Listed
Lead Free	:	Yes

It protects against dangerously hot water in any commercial sink or lavatory application
This valve can be used with any type of faucet for maximum flexibility and can accommodate a single lavatory or up to 8 hand washing stations having a 0.5 GPM flow rate
Lead-free certified DZR brass body with corrosion resistant and lead free internal components
Integral and cartridge-style checks with accessible screens to prevent backflow and to filter debris from entering the valve
Temperature adjustment is made using an Allen wrench, a locknut on the bonnet prevents unauthorized or accidental temperature adjustment
Commercial quality paraffin actuator provides repeatable, reliable performance
Factory set to 105 DEG F and field adjustable

Specification https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/037ST7038BCTMV_Spec.pdf
