1/2 X 1/2 X 3/4 300 BLK MI THRD RED TEE

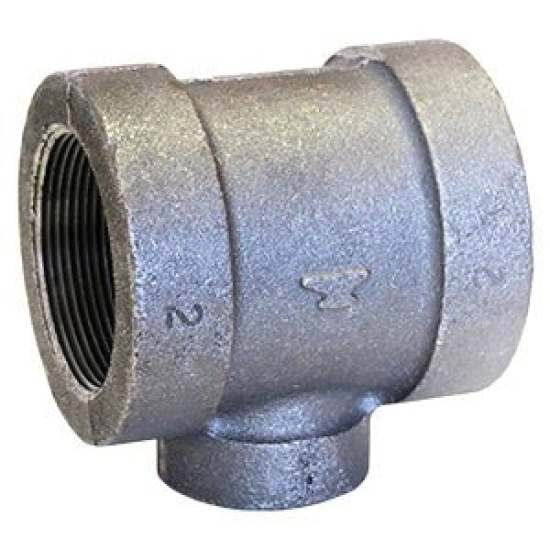

Anvil FIG 1164R 0310521000 Reducing Tee, 1/2 X 1/2 X 3/4 IN, FNPT, Class 300, SCH XH, Malleable Iron
- Manufacturer: Anvil
- Brand: Anvil
- MGPN: 05005007530BLTRT
- MPN: 0310521000
- UPC: 690291027383
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil class 300 malleable iron fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 IN (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 BAR).
Anvil Reducing Tee, Reducing Tee, Series/Model: FIG 1164R, Pressure Class: Class 300, 1/2 X 1/2 X 3/4 IN Nominal, Connection Type: FNPT, SCH XH, Malleable Iron, Material Standard: ASTM A197, Finish/Color: Black, 600 PSI Maximum Pressure, -20 To 550 DEG F, Industry Standards: ASME B16.3, cULus Listed, FM Approved, Other Physical Dimension: 1-11/16 X 1-11/16 X 1-7/8 IN Center To End, 2.460 LB Weight
| Item Name | : | Reducing Tee |
| Series/Model | : | FIG 1164R |
| Pressure Class | : | Class 300 |
| Nominal Size | : | 1/2 X 1/2 X 3/4 IN |
| Connection Type | : | FNPT |
| Schedule | : | SCH XH |
| Material | : | Malleable Iron |
| Material Standard | : | ASTM A197 |
| Finish/Color | : | Black |
| Maximum Pressure | : | 600 PSI |
| Temperature Rating | : | -20 To 550 DEG F |
| Industry Standards | : | ASME B16.3, cULus Listed, FM Approved |
| Other Physical Dimension | : | 1-11/16 X 1-11/16 X 1-7/8 IN Center To End |
| Weight | : | 2.460 LB |
