1/2 CS FLGD BALL VALVE

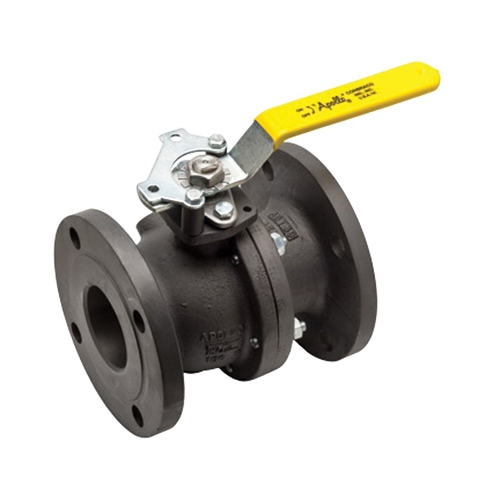

Apollo Valves 88-100 Class 150 Carbon Steel Lever Handle Uni-Body Standard Ball Valve, 1/2 IN, Flanged
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 0508810301BV
- MPN: 88-103-01
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Uni-Body Standard Ball Valve, Series/Model: Series 88-100, Nominal Size: 1/2 IN, Connection Type: Flanged, Pressure Rating: 285 PSI (WOG), 150 PSI (SWP), Class 150 Pressure Class, Temperature Rating: -50 To 550 DEG F, Carbon Steel Body Material, Lever Handle Operator Type, Handle Material: Steel, Stem Material: Carbon Steel, Trim Material: Carbon Steel Ball, Packing Material: RPTFE Stem, Seat Material: RPTFE, Seal Material: PTFE, Material Standard: Body: ASTM A216, Ball And Stem: ASTM A108, Finish/Color: Zinc Plated Handle, Chrome Plated Ball, Industry Standards: WW-V-3 Type: II Federal Specification, 4-1/4 IN Width, 3-1/2 IN Height, Lead Free: No, Other Physical Dimension: 2.56 IN Inlet Center To Top Of Handle, 4.37 IN Handle Length
| Item Name | : | Standard Ball Valve |
| Type | : | Uni-Body |
| Series/Model | : | Series 88-100 |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Flanged |
| Pressure Rating | : | 285 PSI (WOG), 150 PSI (SWP) |
| Pressure Class | : | Class 150 |
| Temperature Rating | : | -50 To 550 DEG F |
| Body Material | : | Carbon Steel |
| Operator Type | : | Lever Handle |
| Handle Material | : | Steel |
| Stem Material | : | Carbon Steel |
| Trim Material | : | Carbon Steel Ball |
| Packing Material | : | RPTFE Stem |
| Seat Material | : | RPTFE |
| Seal Material | : | PTFE |
| Material Standard | : | Body: ASTM A216, Ball And Stem: ASTM A108 |
| Finish/Color | : | Zinc Plated Handle, Chrome Plated Ball |
| Industry Standards | : | WW-V-3 Type: II Federal Specification |
| Width | : | 4-1/4 IN |
| Height | : | 3-1/2 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 2.56 IN Inlet Center To Top Of Handle, 4.37 IN Handle Length |
| Weight | : | 3.200 LB |
- Investment cast body
- Adjustable packing gland
- Positive shut-off
- Corrosion resistant
- Blow-out proof stem design
- Field repairable
- Nitride corrosion protection
- Actuator mounting provisions
