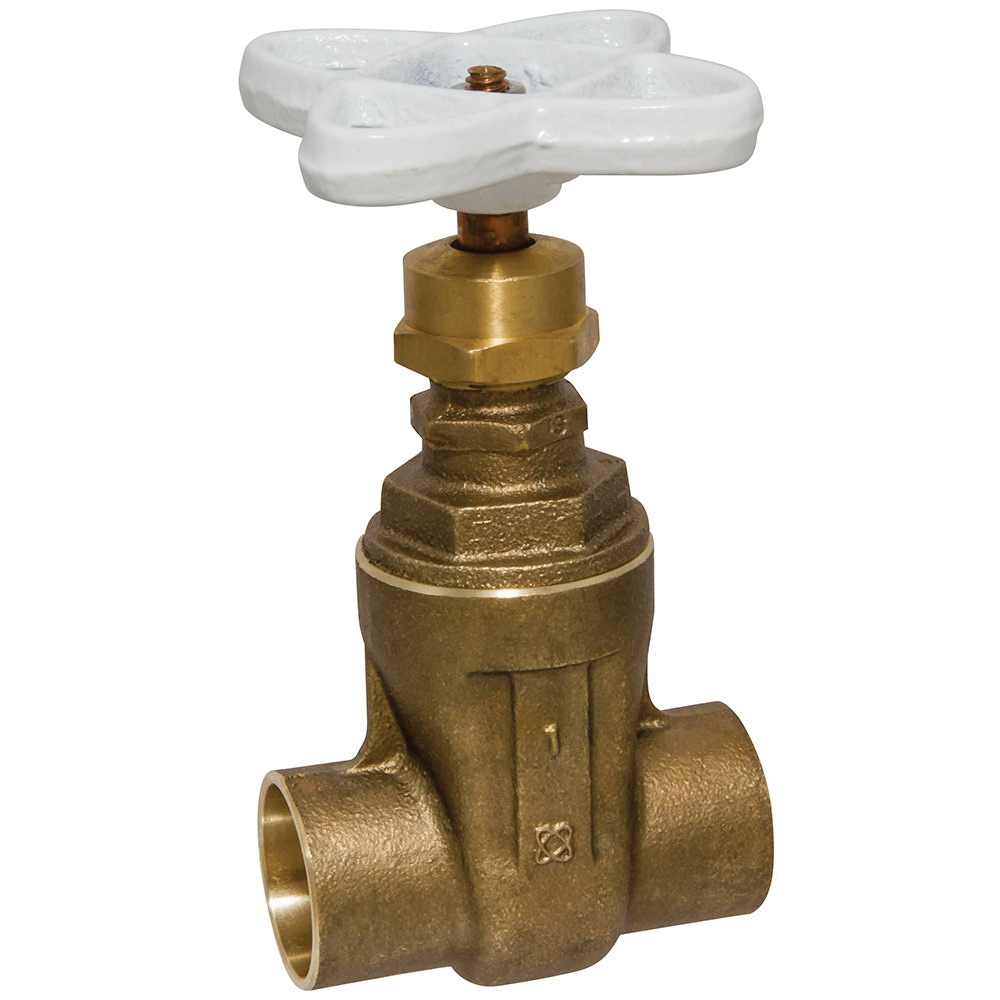

1/2 S113-LF 125 LEAD FREE BRZ C X C NRS GATE VALVE

Non-Rising Stem Gate Valve, Series/Model: Model S-113-LF, Nominal Size: 1/2 IN, Connection Type: Compression (Solder), Pressure Rating: 200 PSI (CWP) Non-Shock, Class 125 Pressure Class, Silicon Bronze Body Material, Handwheel Operator Type, Handle Material: Malleable Iron, Stem Material: Silicon Bronze, Packing Material: Aramid Fibers With Graphite, Bronze Or Brass Packing Gland, Material Standard: Body: ASTM B584, Stem: ASTM B99, Gland: ASTM B62/B584/B16, Handle: ASTM A47, Material Specification: Body: UNS C87850, Stem: UNS C65100, Gland: UNS C84400, Finish/Color: White Handle, Industry Standards: MSS-SP-80/139 Compliant, NSF/ANSI 61-8,372 Certified, 1.94 IN Width, Lead Free: Yes, Other Physical Dimension: 3.63 IN Inlet Center To Top Of Handle

The NIBCO® gate valve features a screw-in bonnet for service where infrequent maintenance is required. Solder ends allow for ease of installation. The gate valve is constructed of high quality lead-free dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. The lead-free valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services. Non-rising stem gate valves are used when positive shutoff is required and a space saving is necessary. Choose NIBCO® valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® valves are backed by the NIBCO INC. 5-YR 125% limited warranty.

• Silicon bronze screw-in bonnet
• Silicon bronze solid wedge
• Dezincification resistant
• Silicon bronze stuffing box, 300 stainless steel handwheel nut, aluminum identification plate
• Lead free marking double oval in body casting, white handle and blue hang tag

Application: For human consumption, including commercial and residential construction

• Brochure https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NIBCO_NHAC00F_Brochure.pdf
• Instruction/Installation Manual https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NIBCO_NJ0J0X6_Instruction_Installation_Manual.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NIBCO_NJ0J0X6_Specification_Sheet.pdf
• Warranty Information https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/NIBCO_NF74008_Warranty_Information.pdf
