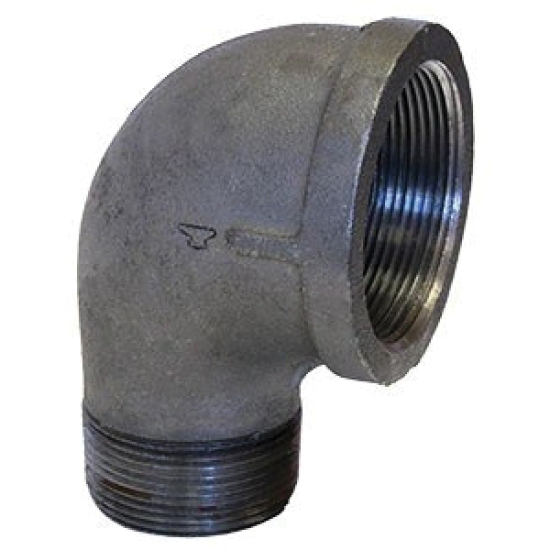

3/4 X 1/2 STD GALV ST 90 RED ELL
Anvil FIG 1103R 0311019004 90 DEG Reducing Street Elbow, 3/4 X 1/2 IN, MNPT X FNPT, Class 150, SCH 40
- Manufacturer: Anvil
- Brand: Anvil
- MGPN: 07505015GTRS90
- MPN: 0311019004
- UPC: 690291028779
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil class 150 malleable iron fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 IN (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 BAR).
Anvil 90 DEG Reducing Street Elbow, 90 DEG Reducing Street Elbow, Series/Model: FIG 1103R, Pressure Class: Class 150, 3/4 X 1/2 IN Nominal, Connection Type: MNPT X FNPT, SCH 40, Malleable Iron, Material Standard: ASTM A153, Finish/Color: Galvanized, 300 PSI Maximum Pressure, -20 To 550 DEG F, Industry Standards: ASME B16.3, cULus Listed, FM Approved, Other Physical Dimension: 1-3/4 X 1-3/16 IN Center To End, 0.320 LB Weight
| Item Name | : | 90 DEG Reducing Street Elbow |
| Series/Model | : | FIG 1103R |
| Pressure Class | : | Class 150 |
| Nominal Size | : | 3/4 X 1/2 IN |
| Connection Type | : | MNPT X FNPT |
| Schedule | : | SCH 40 |
| Material | : | Malleable Iron |
| Material Standard | : | ASTM A153 |
| Finish/Color | : | Galvanized |
| Maximum Pressure | : | 300 PSI |
| Temperature Rating | : | -20 To 550 DEG F |
| Industry Standards | : | ASME B16.3, cULus Listed, FM Approved |
| Other Physical Dimension | : | 1-3/4 X 1-3/16 IN Center To End |
| Weight | : | 0.320 LB |
