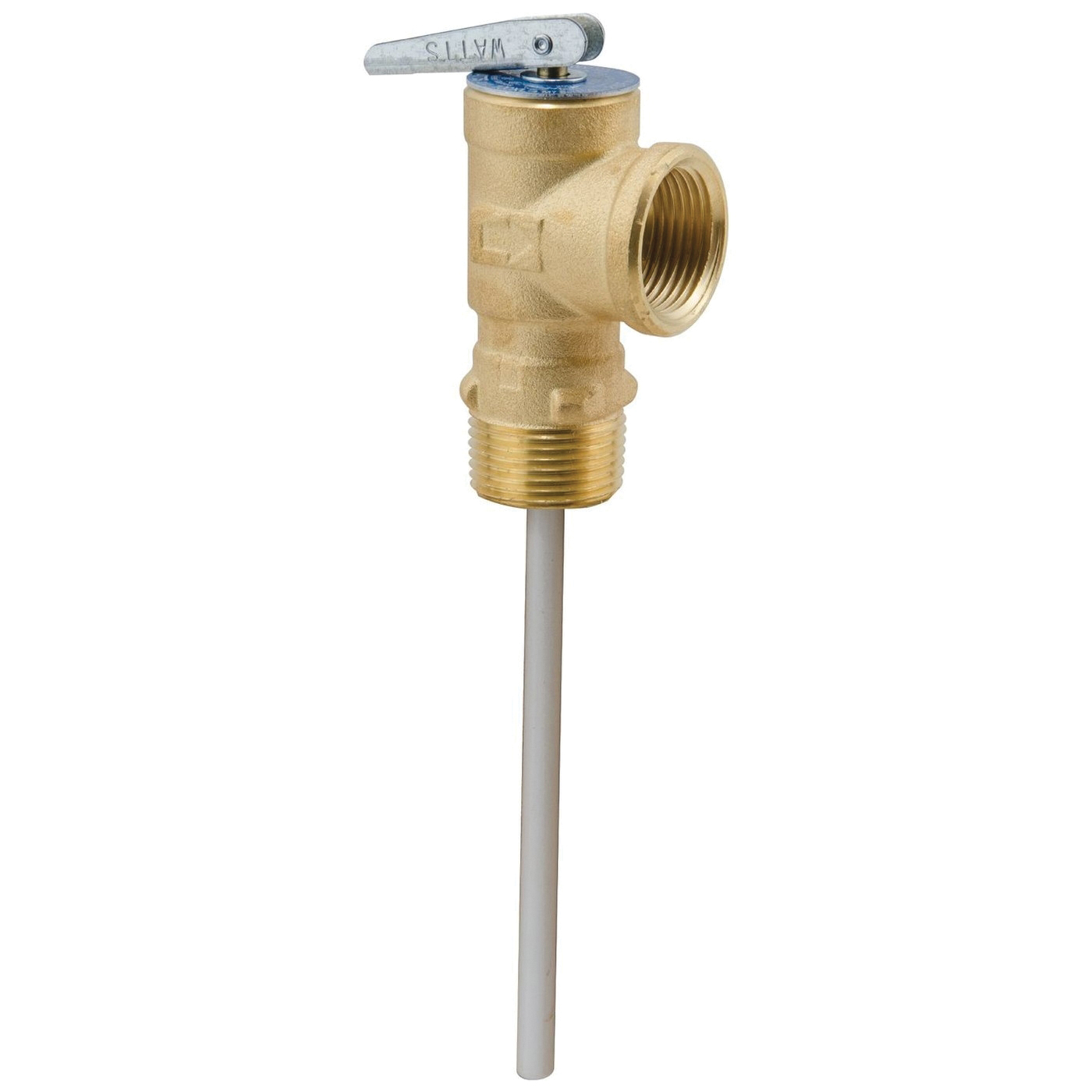

3/4 100-XL 125 TEMP AND PRESSURE RELIEF VALVE

This 3/4 IN temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105000 BTU/HR. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a forged body with NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating, and test lever. This valve is ASME rated and CSA listed. The temperature relief is 210 DEG F (99 DEG C). The pressure relief is set at 125 PSI (8.6 BAR).

Self Closing Temperature And Pressure Relief Valve, Series/Model: Series 100XL-4, Nominal Size: 3/4 IN, Connection Type: MNPT X FNPT, Pressure Rating: 125 PSI, Temperature Rating: 210 DEG F, Brass Body Material, Industry Standards: ASME Rated, CSA Listed, ANSI Z21.22 Certified, 1-5/32 IN Width, 3-11/64 IN Height, Lead Free: No, Other Physical Dimension: 1-3/16 IN Length Of Shank, 4 IN Length Thermostat Element, Additional Specifications: Temperature Steam Rating (CSA): 105000 BTU/HR

• Thermostat is accurate and proven
• Unique thermostat with special thermo-bonded coating
• Provides fully automatic temperature and pressure relief protection for hot water storage tanks and heaters up to 105000 BTU/HR
• Temperature and pressure relief valve to protect the heater from excessive pressure and temperature

• Instruction/Installation Manual https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Watts_0066080_Instruction_Installation_Manual.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Watts_0066080_Specification_Sheet.pdf
• Warranty Information https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/Watts_0009108_Warranty_Information.pdf
