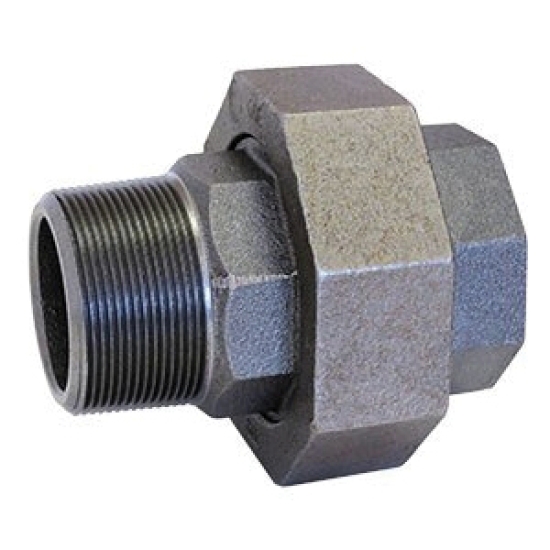

3/4 300 BLK MXF UNION
Anvil FIG 551 0312717200 Union, 3/4 IN, MNPT X FNPT, Class 300, Malleable Iron, Black
- Manufacturer: Anvil
- Brand: Anvil
- MGPN: 07530BLTMFU
- MPN: 0312717200
- UPC: 690291033872
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Anvil International offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet Anvil's strict quality standards. All Anvil class 150/300 malleable iron fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8 IN (10 DN) and larger are 100% gas tested at a minimum of 100 PSI. (6.9 BAR).
Anvil Union, Union, Series/Model: FIG 551, Pressure Class: Class 300, 3/4 IN Nominal, Connection Type: MNPT X FNPT, Malleable Iron, Material Standard: ASTM A197, Finish/Color: Black, 3-3/16 IN Length, 600 PSI Maximum Pressure, -20 To 550 DEG F, Industry Standards: ASME B16.3, cULus Listed, FM Approved, 0.920 LB Weight
| Item Name | : | Union |
| Series/Model | : | FIG 551 |
| Pressure Class | : | Class 300 |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | MNPT X FNPT |
| Material | : | Malleable Iron |
| Material Standard | : | ASTM A197 |
| Finish/Color | : | Black |
| Length | : | 3-3/16 IN |
| Maximum Pressure | : | 600 PSI |
| Temperature Rating | : | -20 To 550 DEG F |
| Industry Standards | : | ASME B16.3, cULus Listed, FM Approved |
| Weight | : | 0.920 LB |
