3/4 77W-104-01A PRESS ENDS FP BALL VALVE

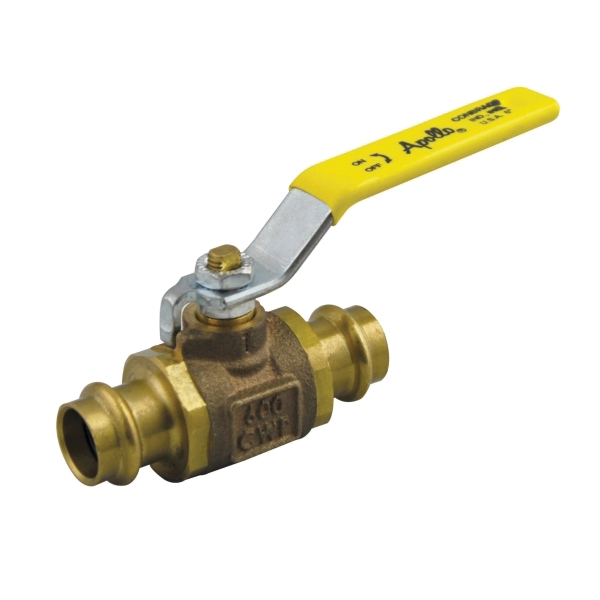

Apollo Valves 77W Bronze Lever Handle 2-Piece Full-Port In-Line Standard Ball Valve, 3/4 IN, Press
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 07577W10401ABV
- MPN: 77W-104-01
- UPC: 670750107566
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
2-Piece Full-Port In-Line Standard Ball Valve, Series/Model: Series 77W, Nominal Size: 3/4 IN, Connection Type: Press, Pressure Rating: 200 PSI (CWP), Temperature Rating: 0 - 250 DEG F, 3/4 IN Opening, Bronze Body Material, Lever Handle Operator Type, Handle Material: Steel/Insulated Polyvinyl, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: Multifill PTFE Stem, Brass Gland, Seat Material: Multifill PTFE, Material Standard: Body: ASTM B584, Ball, Stem And Gland: ASTM B16, Material Specification: Body: UNS C84400, Stem And Gland: UNS C36000, Finish/Color: Plated Handle, Industry Standards: MSS-SP-110 Compliant, ANSI/NSF 61-8, Directive 2002/95/CE (RoHS) Compliant, 3.55 IN Width, Lead Free: No, Other Physical Dimension: 2.01 IN Inlet Center To Top Of Handle, 4.78 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 36
| Item Name | : | In-Line Standard Ball Valve |
| Type | : | 2-Piece, Full-Port |
| Series/Model | : | Series 77W |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | Press |
| Pressure Rating | : | 200 PSI (CWP) |
| Temperature Rating | : | 0 - 250 DEG F |
| Opening Size | : | 3/4 IN |
| Body Material | : | Bronze |
| Operator Type | : | Lever Handle |
| Handle Material | : | Steel/Insulated Polyvinyl |
| Stem Material | : | Brass |
| Trim Material | : | Brass Ball |
| Packing Material | : | Multifill PTFE Stem |
| Gland Material | : | Brass |
| Seat Material | : | Multifill PTFE |
| Material Standard | : | Body: ASTM B584, Ball, Stem And Gland: ASTM B16 |
| Material Specification | : | Body: UNS C84400, Stem And Gland: UNS C36000 |
| Finish/Color | : | Plated Handle |
| Industry Standards | : | MSS-SP-110 Compliant, ANSI/NSF 61-8, Directive 2002/95/CE (RoHS) Compliant |
| Width | : | 3.55 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 2.01 IN Inlet Center To Top Of Handle, 4.78 IN Handle Length |
| Additional Specifications | : | Flow Co-Efficient (Cv): 36 |
| Weight | : | 1.100 LB |
The ApolloPress® 77W series ball valve is ideal for installation in heating, cooling and non-potable plumbing. Now with Leak Before Press® feature and 300 PSIG maximum working pressure.
- Heavy pattern cast bronze body
- Full-port flow
- Adjustable stem packing
- Fast, reliable, economical press installation
- RIDGID® XL press tool compatible
- Leak Before Press® technology
- Blow-out proof stem design
- Corrosion-resistant materials
- 100% factory tested
- Silicone-free
- Made in the USA
