1 X 1-1/4 NIBCO PRESS PC603 P X F

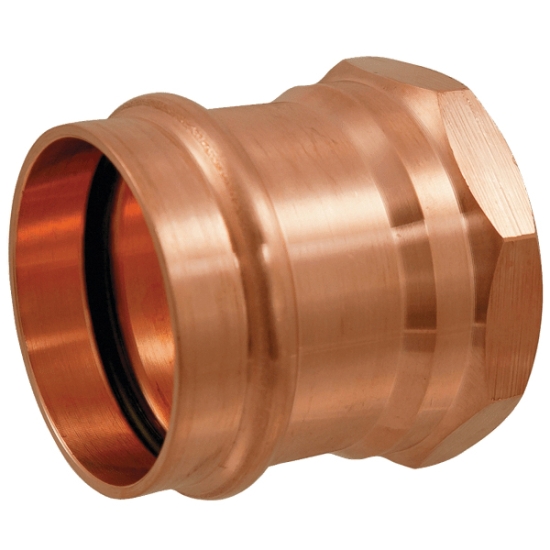

The NIBCO® Press System® copper female adapter features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, permanent, watertight seal in seconds, with no flame, solder or flux. The female adapter has a press connection and female NPT thread. These fittings provide a method for adapting a press connection to a threaded connection.

NIBCO Press System® Adapter, Press System®, Adapter, Series/Model: PC603, 1 X 1-1/4 IN Nominal, Connection Type: Press X FNPT, Wrot Copper, Material Standard: ASTM B75, Material Specification: UNS C12200, 200 PSI (CWP) Maximum Pressure, -20 To 250 DEG F, Industry Standards: ASTM F3226, ASME B16/51, CSA MSE 13 And PS-117, UPC Listed, IAPMO Certified, Other Physical Dimension: 1-3/16 IN Center To End, Wrot: Yes, Lead Free: Yes, 0.436 KG Weight

• Operating pressure 200 PSI CWP
• Select configurations to 300 PSI CWP
• Temperature range -20 to 250 DEG F
• Lead-free
• Dezincification-resistant
• ASTM B75 alloy C12200 copper
• Complies with ASME B16/51 performance
• Third party certified to UPC
• Third party certified to the performance requirements of CSA MSE 13 and PS-117
• IAPMO recognized to 300 PSI per ASTM F3226

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/075050CUNPF90_Broc.pdf
• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/075050CUNPF90_Inst.pdf
• MSDS Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/031CULT90_MSDS.pdf
