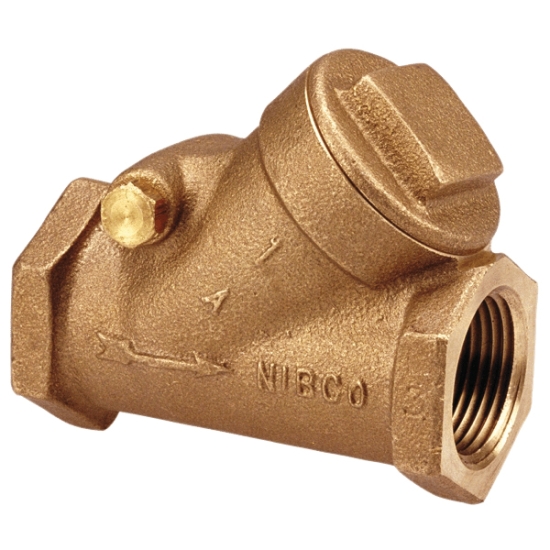

1-1/4 NIBCO T413-Y 125 CHECK VALVE

The NIBCO® bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The bronze check valve features threaded end connections for ease of installation. The check valve is recommended for commercial and industrial steam, water, oil and gas services.

NIBCO Check Valve, Type: Horizontal Swing, Regrinding, Y-Pattern, Check Valve, Series/Model: T-413-Y, 1-1/4 IN Nominal, Connection Type: FIPT, 200 PSI (CWP) Non-Shock, 125 PSI (SWP) At 353 DEG F, Pressure Class: Class 125, Bronze Body, PTFE Seat, Material Standard: Body: ASTM B62, Bonnet: ASTM B62, Disc Hanger: ASTM B62/MPIF SS-316NI-25, Disc Holder: ASTM B62, Hanger Nut: ASTM B16, Hinge Pin: ASTM A276, Hinge Pin Plug: ASTM B140/ASTM B16, Seat Disc Nut: ASTM B16/ASTM B96, Seat Disc Washer: ASTM F594, Material Specification: Body: UNS C83600, Bonnet: UNS C83600, Disc Hanger: UNS C83600, Disc Holder: UNS C83600, Hanger Nut: UNS C36000, Hinge Pin: UNS S31600/S30400, Hinge Pin Plug: UNS C31400/C36000, Seat Disc: UNS C83600, Seat Disc Nut: UNS C36000/C65100, Seat Disc Washer: UNS S30400/S31600, Industry Standards: ASME B1.20.1, MSS SP-139, MSS SP-80, PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer And birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov, 4.19 IN Width, Lead Free: No, Other Physical Dimension: 2.69 IN Center To Top, 2.216 LB Weight

• 125 PSI/8.6 BAR saturated steam to 353 DEG F/178 DEG C
• 200 PSI/13.8 BAR non-shock cold working pressure
• Y-pattern
• Renewable PTFE disc
• Regrindable seat
• Class 125 threaded end connections
• Use in US drinking water applications is prohibited after January 3, 2014
• Conforms to MSS SP-139

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/012T211BGLV_Broc.pdf
• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/125T413YCV_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/125T413YCV_Spec.pdf
