B-G CB-1-1/4LF THRD CIRCUIT SETTER

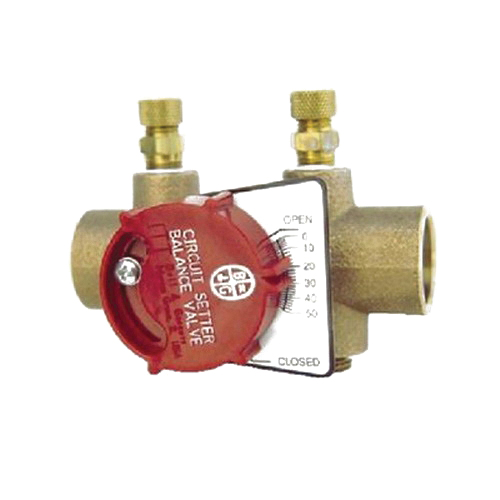

Bell & Gossett CB-1-1/4LF Bronze Calibrated Balance Valve, 1-1/4 IN, NPT, Lead Free
- Manufacturer: Bell and Gossett
- Brand: Bell & Gossett
- MGPN: 125TCSLFI
- MPN: 117103LF
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Calibrated Balance Valve, Series/Model: Model CB-1-1/4LF, Nominal Size: 1-1/4 IN, Connection Type: NPT, Pressure Rating: 300 PSIG At 250 DEG F, Bronze Body Material, Trim Material: Brass Ball, Seat Material: Glass And Carbon Filled TFE Ring, Industry Standards: CSA Certified, Vermont S152 , Maryland House Bill 372 [statute 12-605] Certified, ANSI/NSF-61/372 Annex G Compliant, 4.41 IN Width, 3.69 IN Height, Lead Free: Yes, Additional Specifications: Flow Co-Efficient (Cv): 1.6
| Item Name | : | Calibrated Balance Valve |
| Series/Model | : | Model CB-1-1/4LF |
| Nominal Size | : | 1-1/4 IN |
| Connection Type | : | NPT |
| Pressure Rating | : | 400 PSIG At 250 DEG F |
| Body Material | : | Bronze |
| Trim Material | : | Brass Ball |
| Seat Material | : | Glass And Carbon Filled TFE Ring |
| Industry Standards | : | CSA Certified, Vermont S152 , Maryland House Bill 372 [statute 12-605] Certified, ANSI/NSF-61/372 Annex G Compliant |
| Width | : | 4.41 IN |
| Height | : | 3.69 IN |
| Lead Free | : | Yes |
| Additional Specifications | : | Flow Co-Efficient (Cv): 1.6 |
| Weight | : | 3.5 LB |
- Lead-free brass design
- Brass models 1/2 IN through 3 IN suitable for use in all potable water systems
- Calibrated accurate flow control and measurement
- Ball valve style 1/2 - 4 IN
- Globe valve style 4 - 12 IN
- Union - upstream (1/2 - 2 IN)
- Sweat (female) and NPT (male and female) (1/2 - 2 IN)
- Flanged 2-1/2 - 12 IN
- Grooved 4 - 12 IN
- Flow range up to 7200 GPM
Brochure
