2 VIC 150 MOVER EXP JOINT W/GROOVED

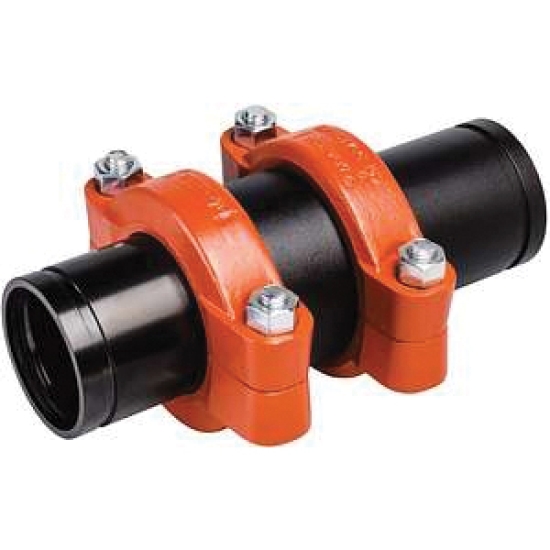

Victaulic Style 150 C020150PE1 Mover Expansion Joint With Grade E Gasket, 2 IN, Grooved, Ductile Iron
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 200150EJGE
- MPN: C020150PE1
- UPC: 688304017629
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic Mover Expansion Joint With Grade E Gasket, Mover Expansion Joint With Grade E Gasket, Series/Model: Style 150, 2 IN Nominal, Connection Type: Grooved, Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Orange Enamel Coated, 2-3/8 IN Outside Diameter, 14.88 IN Length, 350 PSI Maximum Pressure, -30 To 230 DEG F, Industry Standards: cULus Listed, Other Physical Dimension: 3.38 IN Height, 5-1/2 IN Width, 15.900 LB Weight
| Item Name | : | Mover Expansion Joint With Grade E Gasket |
| Series/Model | : | Style 150 |
| Nominal Size | : | 2 IN |
| Connection Type | : | Grooved |
| Length | : | 14.88 IN |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Orange Enamel Coated |
| Maximum Pressure | : | 350 PSI |
| Temperature Rating | : | -30 To 230 DEG F |
| Industry Standards | : | cULus Listed |
| Other Physical Dimension | : | 3.38 IN Height, 5-1/2 IN Width |
| Weight | : | 15.900 LB |
- Slip-type expansion joint providing up to 3 IN axial end movement
- Pressures up to 350 PSI/2413 KPA/24 BAR
