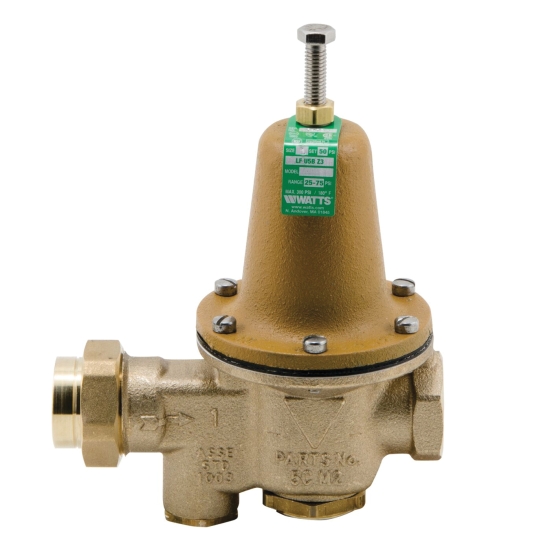

2 LFU5B WATTS WATER PRESSURE RED VALVE

This 2 IN lead-free high-performance water pressure reducing valve with a lead-free cast copper silicon alloy body is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 DEG F (0.5 to 71 DEG C). Suitable for up to 300 PSI (20.7 BAR), the pressure range can be adjusted from 25 - 75 PSI (172 - 517 KPA) with the standard setting at 50 PSI (345 KPA).

Watts Water Pressure Reducing Valve, Water Pressure Reducing Valve, Series/Model: Series LFU5B-Z3, 2 IN Nominal, Connection Type: FNPT, 300 PSI, 33 - 160 DEG F, Cast Copper Silicon Alloy Body, Stainless Steel Seat, Industry Standards: Meets ASSE Standard 1003, ANSI A112.26.2, CSA B356, Southern Standard Plumbing Code And Listed by IAPMO, UPC Listed, 11-1/2 IN Width, 18-1/4 IN Height, Lead Free: Yes, 23.000 LB Weight

• Sealed spring cage with stainless steel cage screws
• Integral stainless steel strainer removable for cleaning
• Serviceable in-line without special tools
• NPT threaded female union inlet by NPT female outlet

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/200LFU5B_Broc.pdf
• Installation Instruction Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/200LFU5B_Inst.pdf
• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/200LFU5B_Spec.pdf
