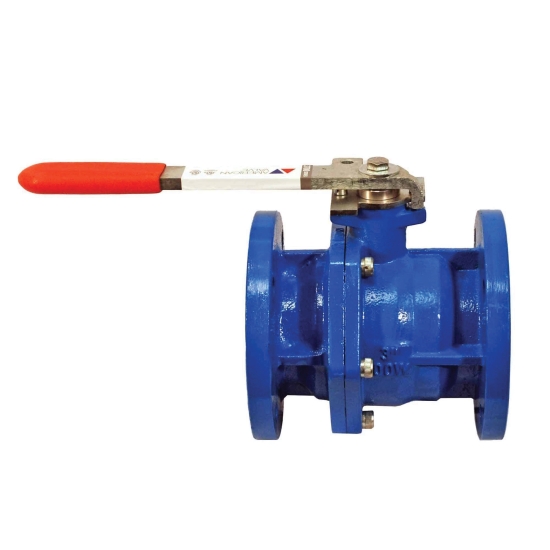

2-1/2 AV 3700 125 EPOXY FLGD CI BALL VLV

American Valve's 3700 Series™ provides the best alternative to gate valves, exactly matching their end-to-end and flanged dimensions. Unlike gate, plug, and butterfly valves, 3700 Series™ valves are designed to maintain a bubble-tight shut-off that exceeds ANSI class VI for many years, even if the valve has not been operated or maintained regularly. The 3700 Series™ valves are certified to meet the requirements of NSF/ANSI 61 and NSF/ANSI 372 for drinking water. All 3700 Series™ valves are rated at 200 PSIG at 200 DEG F, and are full port in all sizes. Ideally suited for potable water, wastewater, or other liquids and compressed air. 3700 Series™ valves are bi-directional, flow may go in either direction. They may be mounted horizontally, vertically, or at an angle and can be locked in either the open or closed position. 2 IN square operating nuts are available for underground service or hard to reach installations.

American Valve Ball Valve, Ball Valve, Series/Model: Series 3700, 2-1/2 IN Nominal, Connection Type: Flanged, 200 PSIG At 200 DEG F, Pressure Class: Class 125, 200 DEG F, Cast Iron Body, Lever Handle Operator, Steel Handle, Stainless Steel Stem, Cast Iron Trim, RPTFE Seat, Buna-N Seal, Material Standard: Body: ASTM A126, Ball: ASTM A48 Class-35, Industry Standards: cULus Listed, UL Listed, ANSI B16.10, NSF/ANSI-61 And 372, 7-1/2 IN Width, Other Physical Dimension: 5.22 IN Center Of Port To Top, 7 IN Flange Diameter, 10.2 IN Center Of Valve To Handle End, Additional Specifications: Number Of Bolt Holes: 4, 30.000 LB Weight

• PFA fused solid ball
• Tapped and plugged boss allows for venting downstream, or test port for backflow preventer
• Full port in all sizes
• Rated 200 W at 200 DEG F
• Direct replacement for cast iron gate valves (ANSI B16.10)
• Low torque
• Blowout-proof stem design
• UL listed to NSF/ANSI 61 and 372

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/10004000CIFBV_Broc.pdf
