2-1/2 QUICKVIC 107V GALV COUPLING WITH T

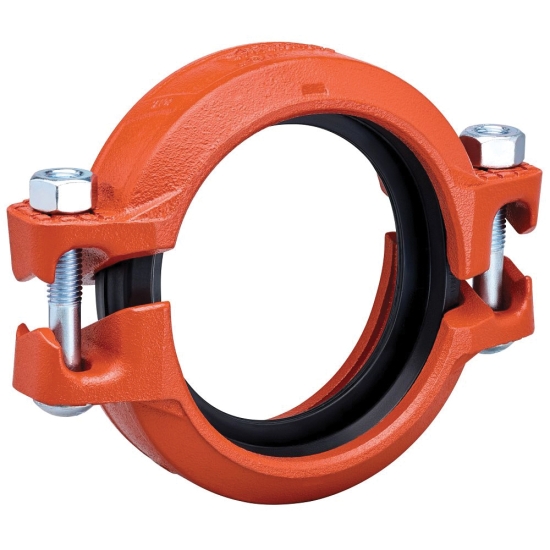

Victaulic QuickVic™ Style 107V C024107GT0 Rigid Coupling With Grade HMT Gasket, 2-1/2 IN, Grooved, Ductile Iron
- Manufacturer: Victaulic Company
- Brand: Victaulic
- MGPN: 250G107VCT
- MPN: C024107GT0
- UPC: 195150301753
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Victaulic QuickVic™ Rigid Coupling With Grade HMT Gasket, QuickVic™, Rigid Coupling With Grade HMT Gasket, Series/Model: Style 107V, 2-1/2 IN Nominal, Connection Type: Grooved, Ductile Iron, Material Standard: ASTM A536 Grade 65-45-12, Finish/Color: Hot-Dipped Galvanized, 2-7/8 IN Outside Diameter, 4.19 IN Length, 750 PSI Maximum Pressure, -20 To 180 DEG F, Industry Standards: cULus Listed, FM And CE EN 10311 CPR (EU) No. 305/2011, Other Physical Dimension: 2.44 IN Width, 0.15 IN Allowable Pipe End Separation, (2) 1/2 X 2-3/4 IN Bolt/Nut, 4.19 IN Body Outside Diameter, 3.227 LB Weight
| Sub Brand | : | QuickVic™ |
| Item Name | : | Rigid Coupling With Grade HMT Gasket |
| Series/Model | : | Style 107V |
| Nominal Size | : | 2-1/2 IN |
| Connection Type | : | Grooved |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 Grade 65-45-12 |
| Finish/Color | : | Hot-Dipped Galvanized |
| Outside Diameter | : | 2-7/8 IN |
| Length | : | 4.19 IN |
| Maximum Pressure | : | 750 PSI |
| Temperature Rating | : | -20 To 180 DEG F |
| Industry Standards | : | cULus Listed, FM And CE EN 10311 CPR (EU) No. 305/2011 |
| Other Physical Dimension | : | 2.44 IN Width, 0.15 IN Allowable Pipe End Separation, (2) 1/2 X 2-3/4 IN Bolt/Nut, 4.19 IN Body Outside Diameter |
| Weight | : | 3.227 LB |
- Shift limiting slant pad provides rigidity
- Pressures up to 750 PSI/5171 KPA/52 BAR
