3/4 MCDONALD 4810-121 IRON

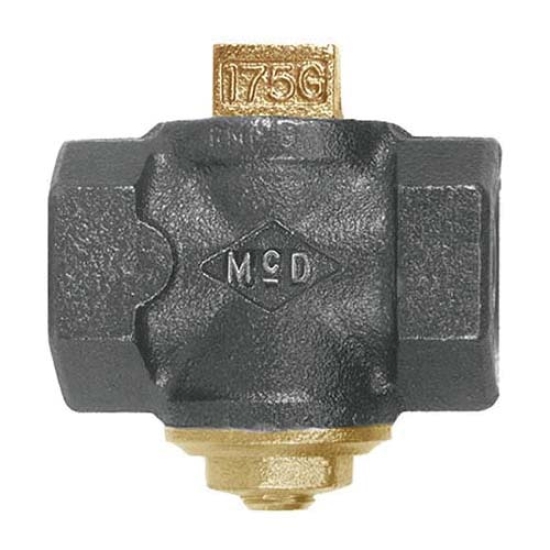

McDonald 559B Series 4810-121 Plug Valve, Flat Head, Non-Insulated, 3/4 X 3/4 IN, FNPT X FNPT, 175 PSI, Cast Iron Body
- Manufacturer: A.Y. McDonald Mfg. Co.
- Brand: McDonald
- MGPN: MCDONALD 4810121 3/4
- MPN: 4810-121
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
McDonald Plug Valve, Type: Flat Head, Non-Insulated, Item Name: Plug Valve, Series/Model: 559B Series, 3/4 X 3/4 IN Nominal, FNPT X FNPT Connection, 175 PSI, Pressure Class: Class 310, Cast Iron Body, Material Standard: ASTM A126 Class B, Finish/Color: Black, Industry Standards: ANSI/ASME B16.33, 3.14 IN Width, 3.16 IN Height
| Item Name | : | Plug Valve |
| Type | : | Flat Head, Non-Insulated |
| Series/Model | : | 559B Series |
| Nominal Size | : | 3/4 X 3/4 IN |
| Connection Type | : | FNPT X FNPT |
| Pressure Rating | : | 175 PSI |
| Pressure Class | : | Class 310 |
| Body Material | : | Cast Iron |
| Material Standard | : | ASTM A126 Class B |
| Finish/Color | : | Black |
| Industry Standards | : | ANSI/ASME B16.33 |
| Width | : | 3.14 IN |
| Height | : | 3.16 IN |
- Valve can be re-lubricated while in service and under pressure
- Plug rotates 360 DEG
- Tamper-resistant design prevents disassembly with normal household tools
- Port opening sized to accommodate the best known stop changers
