3/4 SWEAT BALL VALVE

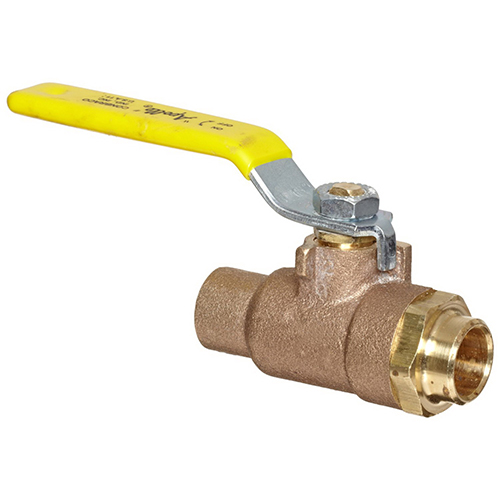

Apollo Valves 95-200 Bronze Lever Handle 2-Piece Standard Stop And Drain Ball Valve, 3/4 IN, Solder
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: 0759520401BV
- MPN: 95-204-01
- UPC: 670750795183
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
2-Piece Standard Stop And Drain Ball Valve, Series/Model: Series 95-200, Nominal Size: 3/4 IN, Connection Type: Solder, Pressure Rating: 400 PSI (CWP), Temperature Rating: -50 To 500 DEG F, Bronze Body Material, Lever Handle Operator Type, Handle Material: Steel, Stem Material: Brass, Trim Material: Brass Ball, Packing Material: RPTFE Stem, Seat Material: RPTFE, Seal Material: EPR, Material Standard: Body: ASTM B584, Ball And Stem: ASTM B16, Material Specification: Body: UNS C84400, Finish/Color: Zinc Plated Handle, Chrome Plated Ball, Industry Standards: MSS-SP-110 Compliant, 4.12 IN Width, Lead Free: No, Other Physical Dimension: 2.15 IN Inlet Center To Top Of Handle, 4.87 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 51
| Item Name | : | Standard Stop And Drain Ball Valve |
| Type | : | 2-Piece |
| Series/Model | : | Series 95-200 |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | Solder |
| Pressure Rating | : | 400 PSI (CWP) |
| Temperature Rating | : | -50 To 500 DEG F |
| Body Material | : | Bronze |
| Operator Type | : | Lever Handle |
| Handle Material | : | Steel |
| Stem Material | : | Brass |
| Trim Material | : | Brass Ball |
| Packing Material | : | RPTFE Stem |
| Seat Material | : | RPTFE |
| Seal Material | : | EPR |
| Material Standard | : | Body: ASTM B584, Ball And Stem: ASTM B16 |
| Material Specification | : | Body: UNS C84400 |
| Finish/Color | : | Zinc Plated Handle, Chrome Plated Ball |
| Industry Standards | : | MSS-SP-110 Compliant |
| Width | : | 4.12 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 2.15 IN Inlet Center To Top Of Handle, 4.87 IN Handle Length |
| Additional Specifications | : | Flow Co-Efficient (Cv): 51 |
| Weight | : | 1.230 LB |
- Reinforced seats
- Blow-out proof stem design
- Adjustable packing gland
- Drain cap designed to prevent loss
- Rugged construction
- RPTFE stem bearing, vinyl grip, B16 retainer, gland screw, Steel lever nut
