2-1/2 C x C PRESS COUPLING

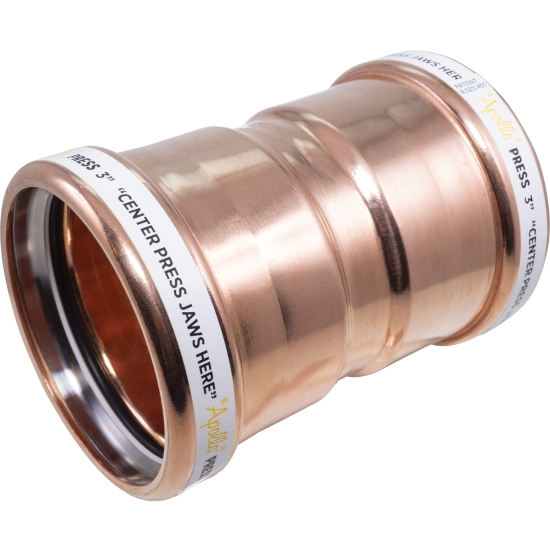

Apollo Valves ApolloPress® 800 10077701 Coupling, 2-1/2 IN, Press X Press, Copper
- Manufacturer: Aalberts integrated piping systems (CONBRACO)
- Brand: Apollo Valves
- MGPN: APOLLO PRESS CPG CXC 2-1/2
- MPN: 10077701
- UPC: 00683264777019
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The ApolloPress® 800 large diameter press coupling features a lead-free dezincification-resistant copper body, a patented stainless steel solid cross section grab ring, a nylon separation ring and an EPDM O-ring. ApolloPress® products are manufactured utilizing proven ASTM materials and standards.
Apollo Valves ApolloPress® 800 Large Diameter Straight Coupling, 2-1/2 IN Nominal, Press X Press Connection, 0.08 IN Wall Thickness, Copper, 2.63 IN Outside Diameter, 4.76 IN Length, 300 PSI Maximum Pressure, 32 - 250 DEG F, Industry Standards: CRN, IAPMO/ANSI/CAN Z1117 Certified, ICC Certified, NSF/ANSI 372 Certified, NSF/ANSI 61 Certified, Wrot: No, Lead Free: Yes, Domestic/Import: Domestic, Additional Specifications: Includes: EPDM Sealing Elements, Buffer Stud and Connection Indicator
| Sub Brand | : | ApolloPress® |
| Item Name | : | Coupling |
| Type | : | Large Diameter, Straight |
| Series/Model | : | 800 |
| Nominal Size | : | 2-1/2 IN |
| Connection Type | : | Press X Press |
| Wall Thickness | : | 0.08 IN |
| Material | : | Copper |
| Outside Diameter | : | 2.63 IN |
| Length | : | 4.76 IN |
| Maximum Pressure | : | 300 PSI |
| Temperature Rating | : | 32 - 250 DEG F |
| Industry Standards | : | CRN, IAPMO/ANSI/CAN Z1117 Certified, ICC Certified, NSF/ANSI 372 Certified, NSF/ANSI 61 Certified |
| Wrot | : | No |
| Lead Free | : | Yes |
| Domestic/Import | : | Domestic |
| Additional Specifications | : | Includes: EPDM Sealing Elements, Buffer Stud and Connection Indicator |
- Leak Before Press® technology
- Visual element, break away band
