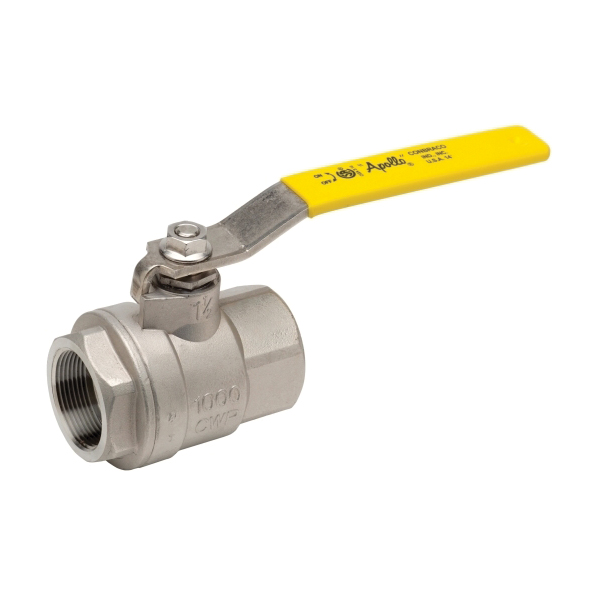

1 SS FP BALL VALVE

Full-Port Standard Ball Valve, Series/Model: Series 76F-100-A, Nominal Size: 1 IN, Connection Type: FNPT, Pressure Rating: 1000 PSI (CWP), 150 PSI (SWP), Temperature Rating: 0 - 500 DEG F, 1 IN Opening, Stainless Steel Body Material, Lever Handle Operator Type, Handle Material: Stainless Steel With Vinyl Grip, Stem Material: Stainless Steel, Trim Material: 316 Stainless Steel Ball, Packing Material: RPTFE Stem, 316 Stainless Steel Gland, Seat Material: RPTFE, Seal Material: RPTFE, Material Standard: Body: ASTM A351 Grade CF8M, Stem And Gland: ASTM A276, Ball: ASTM A276, Industry Standards: MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, Meets NACE MR0175 (2000) And MR0103 (2012), CSA/CAN 3.16-M88 (2009), NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, Drinking Water System Components - Lead Content, 3.34 IN Width, Lead Free: Yes, Other Physical Dimension: 2.27 IN Inlet Center To Top Of Handle, 4-3/4 IN Handle Length, Additional Specifications: Flow Co-Efficient (Cv): 68

• Investment cast components
• Reinforced seats
• Blow-out proof stem design
• Adjustable packing gland
• Stainless steel lever and nut

• Brochure https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_76F-101-27_Brochure.pdf
• Instruction/Installation Manual https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_76F-101-27_Instruction_Installation_Manual.pdf
• Specification Sheet https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/ApolloValves_76F-101-27_Specification_Sheet.pdf
