RC10-10 12-10 CONN. TERM.

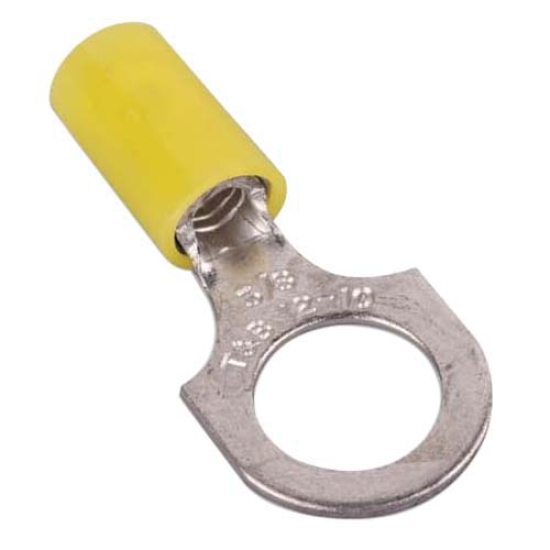

Sta-Kon RC10-10 Ring Terminal, Insulated, 12-10 AWG, Nylon, Tin-Plated/Yellow, 1 IN L, 0.37 IN W, 221 DEG F
- Manufacturer: ABB
- Brand: Sta-Kon
- MGPN: CONNECTOR RING 12-10
- MPN: RC10-10
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Sta-Kon Ring Terminal, Type: Insulated, Item Name: Ring Terminal, 12-10 AWG, 1 IN Length, 0.37 IN Width, Nylon, Finish/Color: Tin-Plated/Yellow, 221 DEG F, Industry Standards: CSA Certified, UL Listed E9809, Additional Specifications: 600 V Maximum Voltage, 0.54 IN Barrel Length, Copper Contact, 0.46 IN Tongue Length, 0.37 IN Tongue Width, 0.04 IN Tongue Thickness, 0.27 IN Hole Spacing, Crimp Termination, #10 Stud
| Item Name | : | Ring Terminal |
| Type | : | Insulated |
| Size | : | 12-10 AWG |
| Length | : | 1 IN |
| Width | : | 0.37 IN |
| Material | : | Nylon |
| Finish/Color | : | Tin-Plated/Yellow |
| Temperature Rating | : | 221 DEG F |
| Industry Standards | : | CSA Certified, UL Listed E9809 |
| Additional Specifications | : | 600 V Maximum Voltage, 0.54 IN Barrel Length, Copper Contact, 0.46 IN Tongue Length, 0.37 IN Tongue Width, 0.04 IN Tongue Thickness, 0.27 IN Hole Spacing, Crimp Termination, #10 Stud |
- Self-insulated with high dielectric strength nylon sleeves
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep
