2-1/2 AV 4000 CI FLGD BALL VALVE

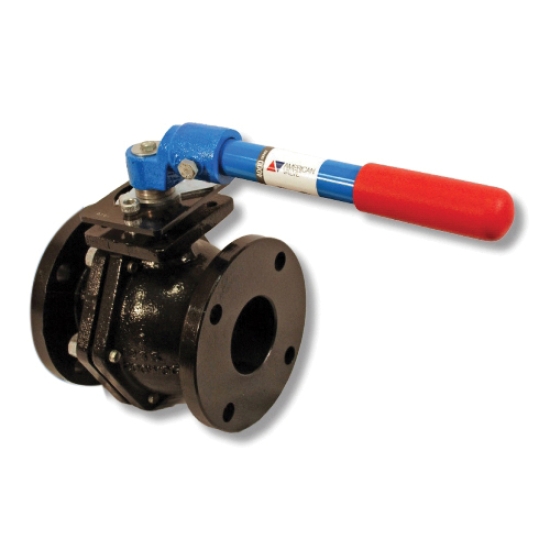

American Valve 4000-2-1/2 Ball Valve, 2-1/2 IN, Flanged, Cast Iron, 200 PSI
- Manufacturer: American Valve Inc
- Brand: American Valve
- MGPN: 2504000CIFBV
- MPN: 4000-2-1/2
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
American Valve Ball Valve, Item Name: Ball Valve, 2-1/2 IN Nominal, Flanged Connection, 200 PSI, 353 DEG F, Cast Iron Body, Handle Operator, Steel Handle, Stainless Steel Stem, PTFE/Stainless Steel Trim, PTFE Packing, Steel Gland, Reinforced PTFE Seat, Material Standard: ASTM A126 Class B, ASTM SA 479 -10a, Industry Standards: NSF/ANSI 61 and NSF/ANSI 372, MSS SP-72, ANSI B16.10, FED SPEC WW-V-35, AWWA C507-99
| Item Name | : | Ball Valve |
| Nominal Size | : | 2-1/2 IN |
| Connection Type | : | Flanged |
| Pressure Rating | : | 200 PSI |
| Temperature Rating | : | 353 DEG F |
| Body Material | : | Cast Iron |
| Operator Type | : | Handle |
| Handle Material | : | Steel |
| Stem Material | : | Stainless Steel |
| Trim Material | : | PTFE/Stainless Steel |
| Packing Material | : | PTFE |
| Gland Material | : | Steel |
| Seat Material | : | Reinforced PTFE |
| Material Standard | : | ASTM A126 Class B, ASTM SA 479 -10a |
| Industry Standards | : | NSF/ANSI 61 and NSF/ANSI 372, MSS SP-72, ANSI B16.10, FED SPEC WW-V-35, AWWA C507-99 |
- A126 Class B cast iron body
- PFA fused solid ball
- Blowout-proof stainless steel stem
- Reinforced PTFE seats
- Face to face and flanged dimensions conform to ANSI Standard B16.10 which exactly match end to end dimensions of all cast iron gate valves and plug valves
- Lockable in full open or closed positions
- ISO mounting pad for easy actuation
- Adjustable length/removable handles to fit into areas of limited space
- Full port through 6 IN
