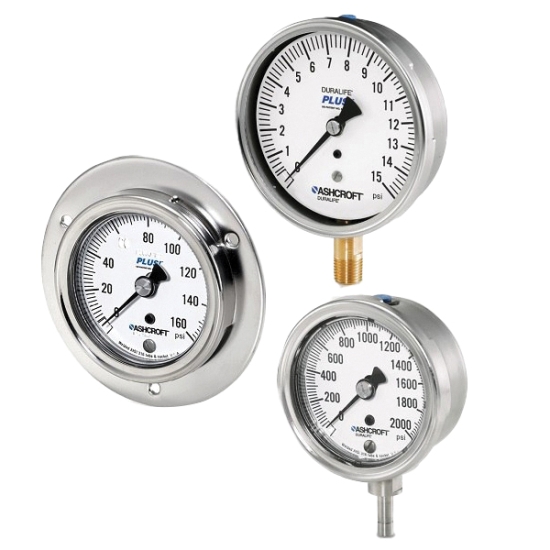

Ashcroft® Duralife Model 1009 1009AWL02L160# Pressure Gauge, 0 - 160 PSI, 1/4 IN MNPT Lower, Polycarbonate Lens
- Manufacturer: Ashcroft Inc
- Brand: Ashcroft
- MGPN: AS GA 1009AWL 02L 0-160 GLYCERINE
- MPN: 1009AWL02L160#
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Ashcroft® 1009 steel case pressure gauge offers exceptional quality, durability, and performance. The removable bayonet ring allows the user easy access for minor adjustments. An ideal choice for satisfying most applications and installation requirements.
Ashcroft® Duralife Pressure Gauge, Duralife, Pressure Gauge, Series/Model: Model 1009, 0 - 160 PSI Measuring, Units Of Measure: PSI, 1/4 IN MNPT Lower Connection, Plus/Minus 1.5% Of Span Accuracy, 304 Stainless Steel Case, Polycarbonate Lens, Aluminum Pointer, Movement Material: 304 Stainless Steel, 316 Stainless Steel Tube, Aluminum/Bronze Socket, Filled With: Glycerin, Back Flange, Front Flange, U-Clamp Mounting, -40 To 250 DEG F, Industry Standards: ASME B40.100, CE Marked, CRN Approved, RoHS Compliant
| Sub Brand | : | Duralife |
| Item Name | : | Pressure Gauge |
| Series/Model | : | Model 1009 |
| Measuring Range | : | 0 - 160 PSI |
| Units Of Measure | : | PSI |
| Connection | : | 1/4 IN MNPT Lower |
| Accuracy | : | Plus/Minus 1.5% Of Span |
| Case Material | : | 304 Stainless Steel |
| Lens Material | : | Polycarbonate |
| Pointer Material | : | Aluminum |
| Movement Material | : | 304 Stainless Steel |
| Tube Material | : | 316 Stainless Steel |
| Socket Material | : | Aluminum/Bronze |
| Filled With | : | Glycerin |
| Mounting | : | Back Flange, Front Flange, U-Clamp |
| Temperature Rating | : | -40 To 250 DEG F |
| Industry Standards | : | ASME B40.100, CE Marked, CRN Approved, RoHS Compliant |
- All welded stainless steel construction
- MSL helium leak tested to 1X10(-6) scc/s
- Ventable fill plugs
- Wide selection of connections
- Meets ASME B40.100 specifications
