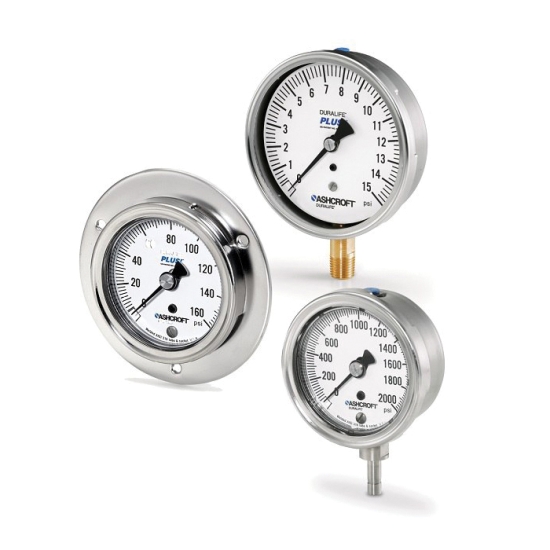

The Ashcroft® 1009 steel case pressure gauge offers exceptional quality, durability and performance. The removable bayonet ring allows the user easy access for minor adjustments. An ideal choice for satisfying most applications and installation requirements.

Ashcroft® 1009 Dry Pressure Gauge, 2-1/2 IN Dial, 160 PSI Measuring, Units Of Measure: PSI, 1/4 IN MNPT Lower Back Connection, Plus/Minus 1% Of Span Accuracy, Black Figures on White Background Dial Face, Steel Case, Pointer Material: Aluminum, Movement Material: 304 Stainless Steel, 316 Stainless Steel Tube, Mounting: Flush, Stem, Surface, -40 - 250 DEG F, 2-3/4 IN Width, 1-1/4 IN Depth, Industry Standards: CE Marked, NSF 61 Certified, RoHS Compliant, UKCA, Additional Specifications: Process Connection Material: Bronze

• PowerFlex™ movement provides superior-resistance to shock, vibration and pulsation, extends product life and reduces maintenance costs
• True Zero™ reduces reading errors by using a "zero box" instead of conventional dial pins (posts), this ensures product safety, integrity and system control
• Field fillable

• Specification Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/GA251009AW02B0160_Spec.pdf
