B-G 107A AIR VALVE

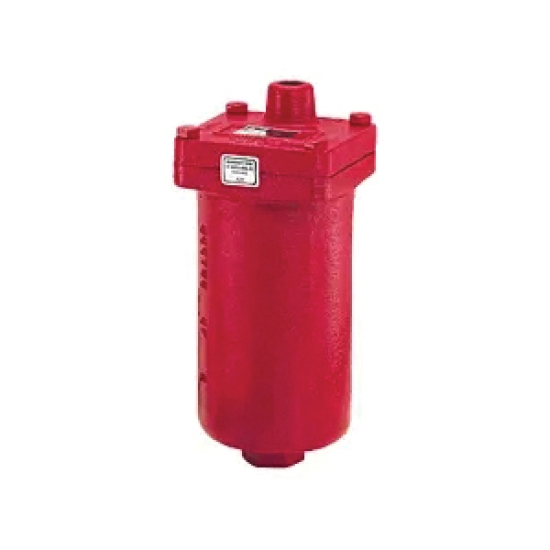

Bell & Gossett Model 107A 113076 Air Vent, 3/4 IN, FNPT, 150 PSIG, Cast Iron
- Manufacturer: Bell and Gossett
- Brand: Bell & Gossett
- MGPN: 113076
- MPN: 113076
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
A rugged high capacity air vent designed to purge free air from liquid systems at operating pressure up to 150 PSIG. The Model 107A air Vent has cast iron body and bonnet, with stainless steel, brass and EPDM internal components and is suitable for a maximum operating temperature of 250 DEG F. The air vent has a 3/4 IN NPT inlet and 3/8 IN NPT outlet.
Bell & Gossett Air Vent, Type: Automatic, High Capacity, Item Name: Air Vent, Series/Model: Model 107A, 3/4 IN Nominal, FNPT Connection, 150 PSIG, Cast Iron, 250 DEG F, 4-1/2 IN Width, 9-5/8 IN Height
| Item Name | : | Air Vent |
| Type | : | Automatic, High Capacity |
| Series/Model | : | Model 107A |
| Nominal Size | : | 3/4 IN |
| Connection Type | : | FNPT |
| Pressure Rating | : | 150 PSIG |
| Material | : | Cast Iron |
| Temperature Rating | : | 250 DEG F |
| Width | : | 4-1/2 IN |
| Height | : | 9-5/8 IN |
