3/16x1/8 BI-LOK BRASS MALE

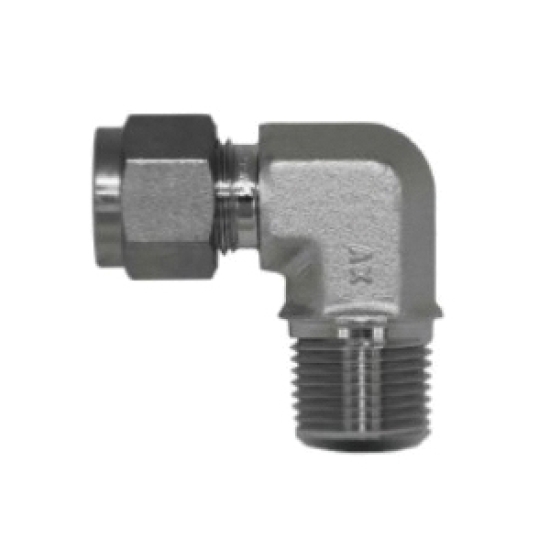

IHARA SCIENCE CORPORATION BI-Lok® DLN DLN-3-2-B 90 DEG Elbow, 3/16 IN Tube, 3/16 X 1/8 IN, 1/8 IN Thread, Tube OD X MNPT
- Manufacturer: IHARA SCIENCE CORPORATION
- Brand: IHARA SCIENCE CORPORATION
- MGPN: BILOK ELL BDLN 3-2
- MPN: DLN-3-2-B
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
BI-Lok® double ferrule tube fittings provide leak-free seals in process, power, and instrumentation applications and are fully heat-code traceable, self-aligning, easy-to-install and individually packaged in sealed protection pouches. Including superior corrosion and vibration-resistant designs, from cryogenic to steam, vacuum to tubing yield pressures, BI-Lok® fittings offer multiple leak-free remakes in a wide range of varying pressure and temperature operating environments.
IHARA SCIENCE CORPORATION BI-Lok® 90 DEG Elbow, BI-Lok®, 90 DEG Elbow, Series/Model: DLN, 3/16 IN Tube, 3/16 X 1/8 IN Nominal, 1/8 IN Thread, Connection Type: Tube OD X MNPT, Brass, Material Standard: ASTM B124, CDA377, Industry Standards: ISO Certified, Other Physical Dimension: 1/2 IN Nut Hex, 1 X 0.74 IN Center To End, 0.12 IN Orifice, 1/2 IN Wrench Flat
| Sub Brand | : | BI-Lok® |
| Item Name | : | 90 DEG Elbow |
| Series/Model | : | DLN |
| Tube Size | : | 3/16 IN |
| Nominal Size | : | 3/16 X 1/8 IN |
| Thread Size | : | 1/8 IN |
| Connection Type | : | Tube OD X MNPT |
| Material | : | Brass |
| Material Standard | : | ASTM B124, CDA377 |
| Industry Standards | : | ISO Certified |
| Other Physical Dimension | : | 1/2 IN Nut Hex, 1 X 0.74 IN Center To End, 0.12 IN Orifice, 1/2 IN Wrench Flat |
