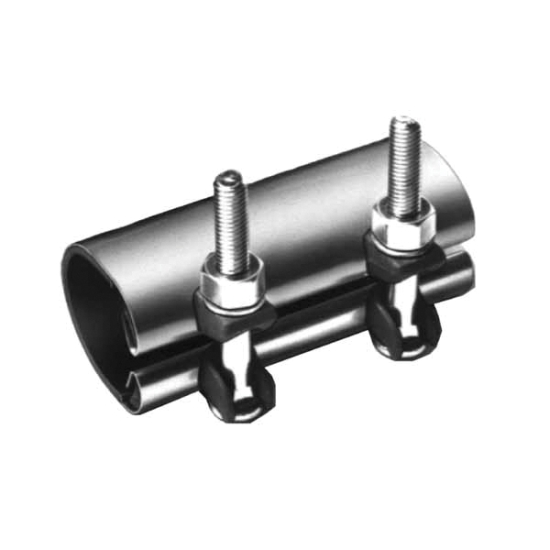

CLAMP REP 6X12 FOR STEEL PIPE R

The Dresser style 118 HandiBand clamp is a field-proven, low-cost band-type repair clamp for quick repair of small leaks and holes in steel gas piping. Installation is fast and easy. Simply wrap the clamp around the pipe with gasket centered over the leaking area, drop the bolt heads through the slotted lugs and tighten the nuts. Compression of the large size gasket seals the leak completely and permanently. Note style 118's do not create a 360 DEG seal around the pipe. Individual components of the style 118 clamp are carefully engineered and constructed with lugs of ductile iron and bolts plated for long life and durability. The style 118 clamp is made of stainless steel for corrosion-resistance in lengths of 3, 6 and 12 IN. The rubber compounded gasket offers resistance to oil, aromatic and aliphatic hydrocarbons, condensates, gasoline and natural gas. These gaskets retain their resilience for the life of the pipeline.

Dresser HandiBand™ Repair Clamp, HandiBand™, Repair Clamp, Series/Model: Style 118, 6 IN, 18-8 Stainless Steel, Material Standard: Lug: ASTM 536, Bolt And Nut: ASTM A307, 100 PSI, 6-5/8 IN Outside Diameter, 12 IN Length, 7.200 LB Weight

• Brochure/Catalog Name https://macombstage.cimm2.com//ASSETS/DOCUMENTS/ITEMS/EN/DRESSER01180307009_Broc.pdf
