ADAPTER 4 STYLE 128 FL 300 LB

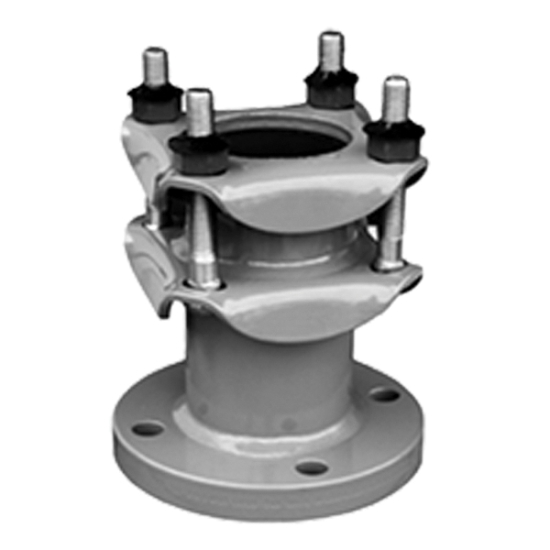

Dresser Style 128 0128-0006-390 Flange Adapter, 4 IN, Class 300, Fusion Bonded Gray Epoxy Coated
- Manufacturer: Dresser Piping Specialties
- Brand: Dresser
- MGPN: DRESSER 01280006390
- MPN: 0128-0006-390
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Fabricated from high-strength steel, Dresser style 128 flange adapters are offered standard up to 24 IN diameter in steel and cast iron pipe sizes. The compression end of the adapter has a Dresser coupling-type design utilizing a wedge gasket for an efficient, leak-proof seal.
Dresser Flange Adapter, Flange Adapter, Series/Model: Style 128, Pressure Class: Class 300, 4 IN Nominal, Material Standard: Follower: AISI C1012, ASME SA36, Body And Flange: ASTM A513, ASTM A635, ASME SA675 Grade 60, Bolts: AWWA C111/ANSI A21.11, Finish/Color: Fusion Bonded Gray Epoxy Coated, 4-1/2 IN Outside Diameter, 8-13/16 IN Length, 150 PSI Maximum Pressure, Industry Standards: ANSI B16.5, Other Physical Dimension: 9 IN Flange Diameter, 7-1/2 IN Bolt Circle Diameter, 3/4 IN Bole Hole Diameter
| Item Name | : | Flange Adapter |
| Series/Model | : | Style 128 |
| Pressure Class | : | Class 300 |
| Nominal Size | : | 4 IN |
| Material Standard | : | Follower: AISI C1012, ASME SA36, Body And Flange: ASTM A513, ASTM A635, ASME SA675 Grade 60, Bolts: AWWA C111/ANSI A21.11 |
| Finish/Color | : | Fusion Bonded Gray Epoxy Coated |
| Outside Diameter | : | 4-1/2 IN |
| Length | : | 8-13/16 IN |
| Maximum Pressure | : | 150 PSI |
| Industry Standards | : | ANSI B16.5 |
| Other Physical Dimension | : | 9 IN Flange Diameter, 7-1/2 IN Bolt Circle Diameter, 3/4 IN Bole Hole Diameter |
