16X3 DRESSER CLAMP

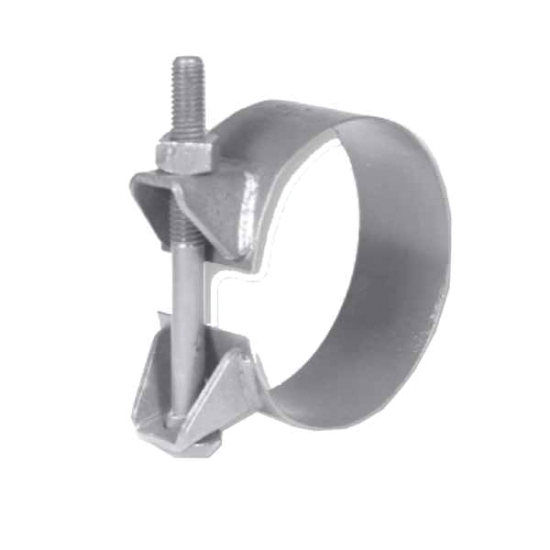

Dresser Style 77 0077-0124-005 Band Clamp, 16 IN, Carbon Steel, Fusion Bonded Gray Epoxy Coated
- Manufacturer: Dresser Piping Specialties
- Brand: Dresser
- MGPN: DRESSER 16 00770124005
- MPN: 0077-0124-005
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Dresser style 77 band clamps are specifically designed to provide a low-cost repair for small pinholes, leaks, corroded areas and pits in straight runs of steel piping. They are suitable for virtually all working pressures and line contents.
Dresser Band Clamp, Band Clamp, Series/Model: Style 77, 16 IN, 1/8 IN Wall Thickness, Carbon Steel, Material Standard: Band/Lugs: AISI C1008/1010, Bolt And Nut: AWWA C111/A21.11, Finish/Color: Fusion Bonded Gray Epoxy Coated, 150 PSI, 16 IN Outside Diameter, Other Physical Dimension: 3 IN Band Width, 5/8 IN Bolt Diameter, 8-1/4 IN Length
| Item Name | : | Band Clamp |
| Series/Model | : | Style 77 |
| Size | : | 16 IN |
| Wall Thickness | : | 1/8 IN |
| Material | : | Carbon Steel |
| Material Standard | : | Band/Lugs: AISI C1008/1010, Bolt And Nut: AWWA C111/A21.11 |
| Finish/Color | : | Fusion Bonded Gray Epoxy Coated |
| Pressure Rating | : | 150 PSI |
| Outside Diameter | : | 16 IN |
| Other Physical Dimension | : | 3 IN Band Width, 5/8 IN Bolt Diameter, 8-1/4 IN Length |
