10 DRESSER #160 CLAMP

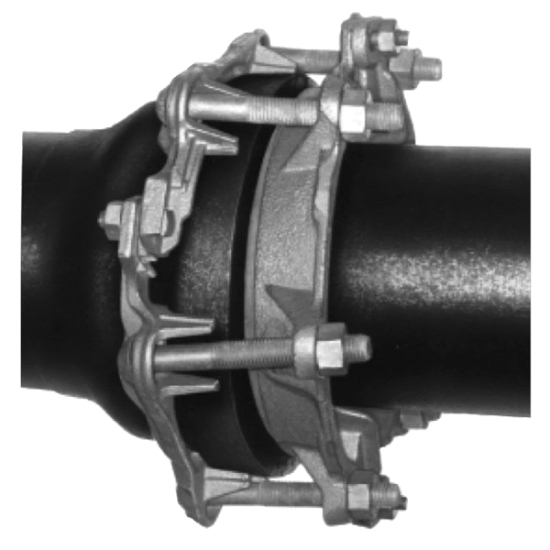

Dresser 00600013205 Bell Joint Clamp, Style 160, 10 IN, Ductile Iron, ASTM A536, For Cast Iron Pipe
- Manufacturer: Dresser Piping Specialties
- Brand: Dresser
- MGPN: DRESSER 160 10
- MPN: 00600013205
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
The Style 160 clamps offer quick installation and NO interruption of service. These bell joint clams permanently stop or prevent leaks through the jointing materials of cast iron bell and spigot joints. Additionally, they are completely adjustable and will provide a close fit on both the pipe bell and spigot.
Dresser Bell Joint Clamp, Type: Style 160, Item Name: Bell Joint Clamp, 10 IN, Ductile Iron, Material Standard: ASTM A536, Other Physical Dimension: 1-1/8 IN Gasket Thickness, 1 IN Gasket Length, 4 Bolts, 5/8 X 5-1/2 IN Bolt Size, Additional Specifications: For Cast Iron Pipe
| Item Name | : | Bell Joint Clamp |
| Type | : | Style 160 |
| Size | : | 10 IN |
| Material | : | Ductile Iron |
| Material Standard | : | ASTM A536 |
| Other Physical Dimension | : | 1-1/8 IN Gasket Thickness, 1 IN Gasket Length, 4 Bolts, 5/8 X 5-1/2 IN Bolt Size |
| Additional Specifications | : | For Cast Iron Pipe |
- The Style 160 clamp features a hinged, wraparound spigot ring design
- There are no clips and the spigot sections have serrated ends that bolt together
