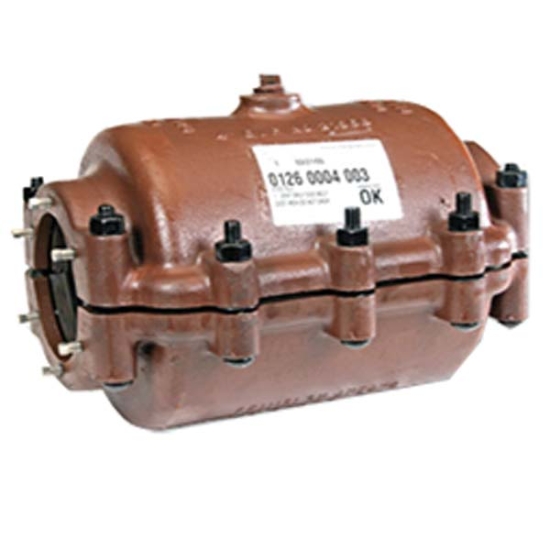

Dresser 01260004003 Repair Clamp, Style 126, 4 IN, Cast Iron, 4.8 IN OD, 19-1/16 IN L
Avoid pipeline shutdowns and expensive, temporary repairs with the Dresser Style 126 Bell-Pack repair sleeve. The Style 126 offers a fast, economical and permanent repair every time. A sleeve of lighter weight and compact design, the Style 126 provides maximum inside dimension clearance for repairing split cast iron bells and leaking mechanical joints.
Dresser Repair Clamp, Type: Style 126, Item Name: Repair Clamp, 4 IN, Cast Iron, 4.8 IN Outside Diameter, 19-1/16 IN Length, Other Physical Dimension: 12-3/8 X 1 IN Screw Size, 6-5/8 X 4 IN Short Side Bolt Size, 4-5/8 X 6 IN Long Side Bolts, Additional Specifications: 1 in Vent Size, For Cast Iron Pipe
Item Name | : | Repair Clamp |
Type | : | Style 126 |
Size | : | 4 IN |
Material | : | Cast Iron |
Outside Diameter | : | 4.8 IN |
Length | : | 19-1/16 IN |
Other Physical Dimension | : | 12-3/8 X 1 IN Screw Size, 6-5/8 X 4 IN Short Side Bolt Size, 4-5/8 X 6 IN Long Side Bolts |
Additional Specifications | : | 1 in Vent Size, For Cast Iron Pipe |
