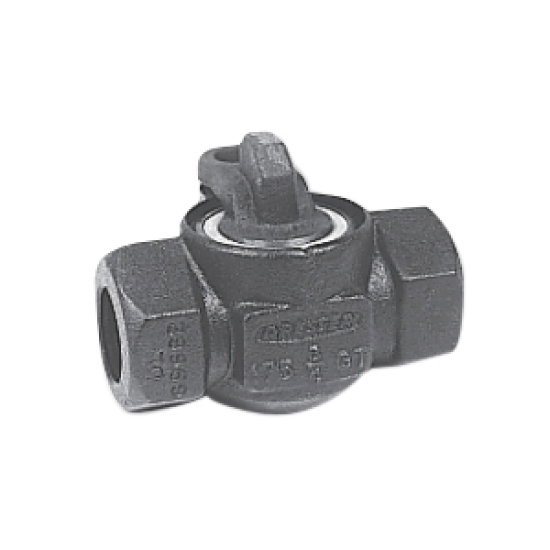

3/4 INSULATED METER VALVE

The Style 275 incorporates a spring-loaded seat, plus a self-sealing feature that increases sealability as operating pressure increases. At low pressures, the leaf-type springs exert pressure to force the elastomeric-coated insert seals into a positive sealing position. At higher pressures, the valve is designed to employ the gas line pressure to impose a supplemental compressive loading against the seals. The higher the line pressure, the greater the sealing force. Since this force can be exerted on either seal, the valve is non-directional.

Dresser Meter Valve, Type: Style 275, Insulated, Item Name: Meter Valve, 3/4 IN Nominal, 175 PSIG, Ductile Iron Body, Ductile Iron Stem, BUNA-N Seat, BUNA-N Seal, Industry Standards: ANSI B16.33-81 and DOT 192, 2-17/32 IN Width, Other Physical Dimension: 5-25/32 IN Length

• The valve body and plug are high grade malleable or ductile iron
• Factory-installed, permanent lubrication for maintenance-free service
• Tamper-proof design
• The valve stem is dual O-ring sealed, one O-ring provides a positive pressure seal to the atmosphere, while the other seals against moisture intruding between the body and bonnet
• The bottom of the valve body is solid, eliminating any leak path to the atmosphere
• The lock wing is an integral part of the plug
• Each valve body features a boss to accommodate a 1/8 IN IPS tap for testing
