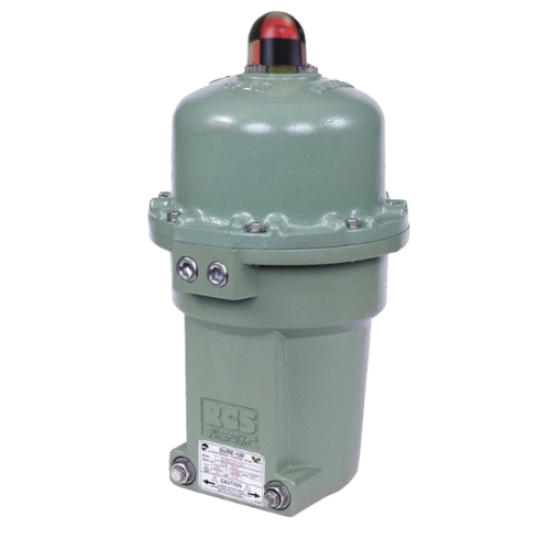

Dresser Sure 100 SURE 100-10 RCS Actuator, 1200 IN-LB
SURE 100-10-7 SPRING RETURN
- Manufacturer: Dresser Piping Specialties
- Brand: Dresser
- MGPN: RA05SURE100107B2ACW115AC
- MPN: SURE 100-10
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Dresser RCS Actuator, Item Name: RCS Actuator, Series/Model: Sure 100, 1200 IN-LB Output Torque, Industry Standards: CE Certified, CSA NRTL/C Certified, -40 To 150 DEG F, Additional Specifications: NEMA Rating: NEMA 4/6/7, 115 - 230 V, 1.9 - 2.9 A At 115 V, 0.9 - 1.35 A At 220 V, 50/60 HZ, Speed Of Operation: 10 SEC Per 90 DEG Electric At 60 HZ, 5 SEC Per 90 DEG Spirit
| Item Name | : | RCS Actuator |
| Series/Model | : | Sure 100 |
| Output Torque | : | 1200 IN-LB |
| Industry Standards | : | CE Certified, CSA NRTL/C Certified |
| Temperature Rating | : | -40 To 150 DEG F |
| Additional Specifications | : | NEMA Rating: NEMA 4/6/7 |
| Voltage Rating | : | 115 - 230 V |
| Amperage Rating | : | 1.9 - 2.9 A At 115 V, 0.9 - 1.35 A At 220 V |
| Frequency Rating | : | 50/60 HZ |
| Speed Of Operation | : | 10 SEC Per 90 DEG Electric At 60 HZ, 5 SEC Per 90 DEG Spirit |
- AC voltages 4 - SPDT switches
- Helical torsion spring, spring steel, XYLAN® coated
- PTC heater, motor brake
Installation Instruction Name
