DRESSER MISC CPLG STRAP
Dresser Style 440 0440-0102-001 Joint Harness Restraint, 2 - 10 IN IPS, Steel
- Manufacturer: Dresser Piping Specialties
- Brand: Dresser
- MGPN: DRESSER STRAP 4400102001
- MPN: 0440-0102-001
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:

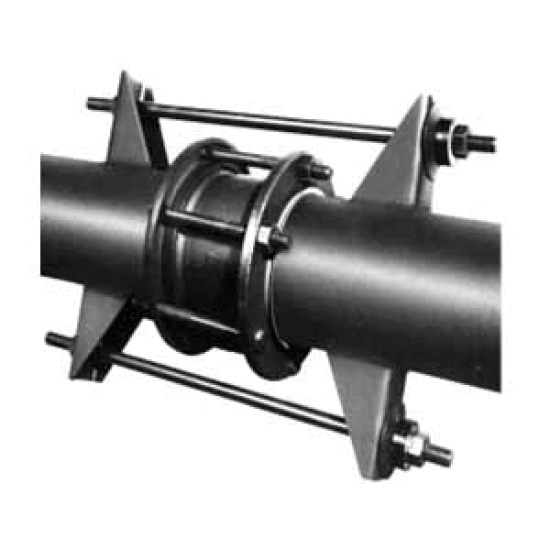

Dresser joint harnesses are used in conjunction with seal-only couplings to prevent pipe pull-out.Standard style 440 harness restraint consists of steel tie-bolts, diametrically opposite, which extend across a coupled joint from lugs welded to the pipe on either side of the joint. Joint harnesses are particularly effective on unanchored bends subject to pulsating pressures of sharp intensity.
Dresser Joint Harness Restraint, Joint Harness Restraint, Series/Model: Style 440, 2 - 10 IN IPS Nominal, Steel, Additional Specifications: Includes: (2) Lugs, (1) Deflection Ring, (1) 5/8 X 32 IN Stud Bolt for 7 IN Middle Ring
| Item Name | : | Joint Harness Restraint |
| Series/Model | : | Style 440 |
| Nominal Size | : | 2 - 10 IN IPS |
| Material | : | Steel |
| Additional Specifications | : | Includes: (2) Lugs, (1) Deflection Ring, (1) 5/8 X 32 IN Stud Bolt for 7 IN Middle Ring |
