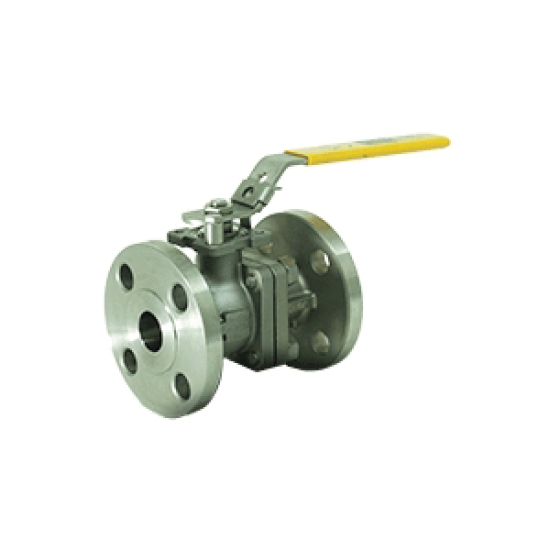

Flo-Tite™ Full-Flo F150SSFFGL015 Ball Valve, 1/2 IN, Flanged, Stainless Steel, Class 150
1/2 FLO-TITE F150SSFFGL BA VLV
- Manufacturer: Flo-Tite
- Brand: Flo-Tite™
- MGPN: VLV BA SS F150 FFGL 1/2
- MPN: F150SSFFGL015
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
Flo-Tite™ Ball Valve, Type: 2-Piece, Floating, Item Name: Ball Valve, Series/Model: Full-Flo, 1/2 IN Nominal, Flanged Connection, Pressure Class: Class 150, -20 To - 550 DEG F, 0.59 IN Opening, Stainless Steel Body, Plastic Handle, Graphite/TFM Stem, Graphite/RPTFE Packing, TFM Seat, Material Standard: ASTM A351, Other Physical Dimension: 4-1/4 IN Inlet To Outlet Length, 2.6 IN Top To Inlet Center, Brand: Flo-Tite™, 4.000 LB Weight
| Item Name | : | Ball Valve |
| Type | : | 2-Piece, Floating |
| Series/Model | : | Full-Flo |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Flanged |
| Pressure Class | : | Class 150 |
| Temperature Rating | : | -20 To - 550 DEG F |
| Opening Size | : | 0.59 IN |
| Body Material | : | Stainless Steel |
| Handle Material | : | Plastic |
| Stem Material | : | Graphite/TFM |
| Packing Material | : | Graphite/RPTFE |
| Seat Material | : | TFM |
| Material Standard | : | ASTM A351 |
| Other Physical Dimension | : | 4-1/4 IN Inlet To Outlet Length, 2.6 IN Top To Inlet Center |
| Brand | : | Flo-Tite™ |
| Weight | : | 4.000 LB |
- Floating ball design
- Protected seat design
- O-ring backed seat
- Fire safe designed to API 607-5
- Spiral wound body gasket with secondary metal to metal seal
- Open and close locking device for position safety lockout
- O-ring reinforced stem packing
- Cryogenic design
- Super-tek seating
- Live loaded stem design
- Anti-static grounding device
- Flatted shaft - positive flow indication
- Ball cavity relief
- V-ball control
