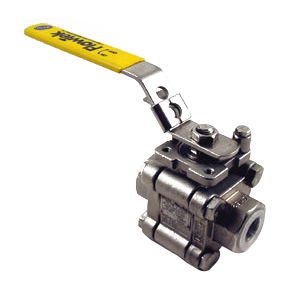

1/2 FLOWTEK TRIAD FP31 THRD FP 3-PC LIVE LOADED BALL VALVE
FLOW-TEK FP31 Class 600 316 Stainless Steel Manual Locking Handle 3-Piece Full-Port Live Loaded Ball Valve, 1/2 IN, Threaded
- Manufacturer: FLOW-TEK Inc
- Brand: Flow-Tek
- MGPN: 050FLOFP31BV
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- See All Availability
-
Price:
| Item Name | : | Ball Valve |
| Type | : | 3-Piece, Full-Port, Live Loaded |
| Series/Model | : | Series FP31/Triad |
| Nominal Size | : | 1/2 IN |
| Connection Type | : | Threaded |
| Pressure Rating | : | 2200 PSI (WOG) |
| Pressure Class | : | Class 600 |
| Temperature Rating | : | -50 To 550 DEG F |
| Body Material | : | 316 Stainless Steel |
| Operator Type | : | Manual Locking Handle |
| Handle Material | : | 304 Stainless Steel With Vinyl Sleeve |
| Stem Material | : | 316 Stainless Steel |
| Trim Material | : | 316 Stainless Steel Ball |
| Packing Material | : | Graphite |
| Gland Material | : | 304 Stainless Steel |
| Seat Material | : | TFM 1600 |
| Seal Material | : | Graphite/TFM |
| Material Standard | : | Body: ASTM A351 Grade CF8M, Ball: ASTM A351 Grade CF8M, Stem: ASTM A479 |
| Industry Standards | : | API 598, MSS SP-72, ASME B16.34 Certified |
| Width | : | 2.99 IN |
| Lead Free | : | No |
| Other Physical Dimension | : | 2.83 IN Inlet Center To Top Of Handle, 6-1/2 IN Handle Length |
| Additional Specifications | : | Torque Rating: 70 IN-LB |
| Brand | : | FLOW-TEK |
| Firesafe | : | No |
- Flow-Tek's Triad series ball valves feature live loaded stem seals and a redundant body seal design. Available in full and standard port models, these rugged, high pressure 3-piece valves are ideal for process, severe service, high temperature, and high cycle applications
Specification Sheet
